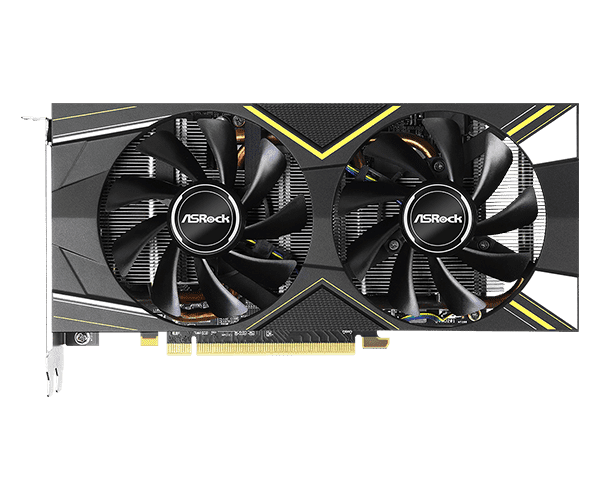

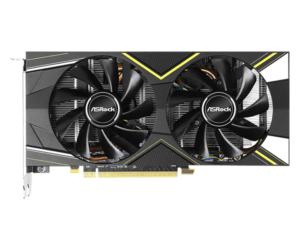

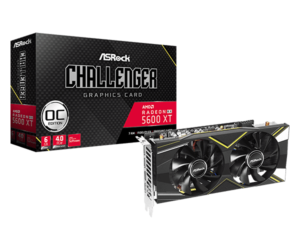

ASROCK AMD RX 5600 XT Challenger D 6G OC Graphic Card
RX5600XT CLD 6GO
- Clock: GPU / Memory
Boost Clock: Up to 1750* MHz / 14 Gbps**
Game Clock: 1615* MHz / 14 Gbps**
Base Clock: 1420* MHz / 14 Gbps** - Key Specifications:
Radeon RX 5600 XT Graphics
2nd Gen 7nm GPU
6GB 192-bit GDDR6
1 x 8-pin Power Connector
3 x DisplayPort / 1 x HDMI - Key Features:
Dual Fan Design
Metal Backplate
AMD Eyefinity Technology
Radeon FreeSync™ 2 HDR
*Need to update L07 version VBIOS or later
**Need to update L08 version VBIOS or later
Description
- Specification
-
Graphics Engine– AMD Radeon RX 5600 XT
-
Bus Standard– PCI Express x16 Gen4
-
DirectX– 12
-
OpenGL– 4.6
-
Memory– GDDR6 6GB
-
Engine Clock– Boost Clock: Up to 1750 MHz
– Game Clock: 1615 MHz
– Base Clock: 1420 MHz*Need to update L07 version VBIOS or later
-
Stream Processors– 2304
-
Memory Clock– 14 Gbps
*Need to update L08 version VBIOS or later
-
Memory Bus– 192-bit
-
Resolution– Digital Max Resolution: 8K HDR 60Hz
-
Interface– 1 x HDMI 2.0b
– 3 x DisplayPort 1.4 with DSC 1.2a -
HDCP– Yes
-
Multi-view– 4
-
Recommended PSU– 550W
-
Power Connector– 1 x 8-pin
-
Accessories– 1 x Quick Installation Guide
-
Dimensions– 240.5 x 126.5 x 53 mm
