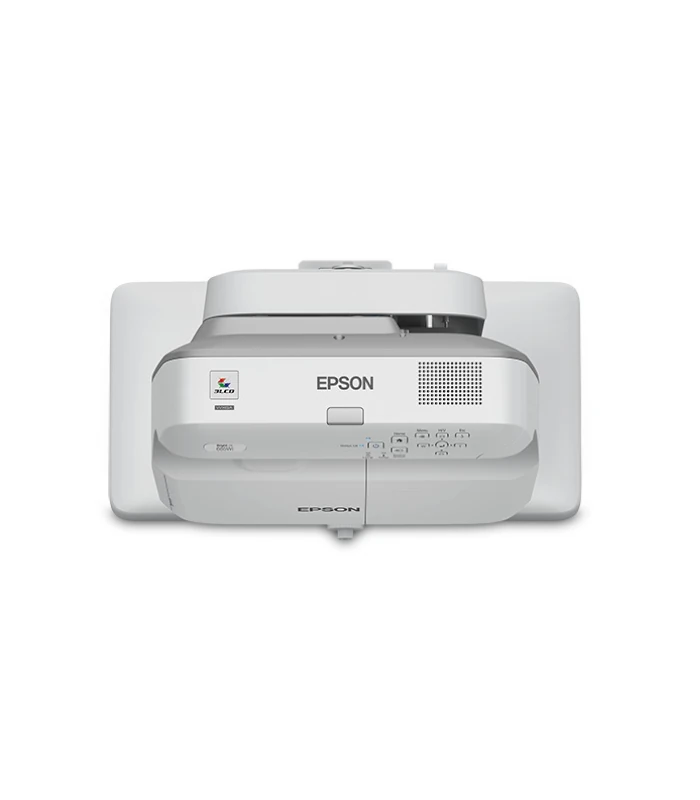

Epson EB‐685WI 3500 Lumens WXGA Ultra Short Throw Projector

Description

• Epson EB‐685WI 3500 Lumens WXGA Ultra Short Throw Projector

  Innovative pen-interactive teaching solution with a large scalable screen of up to 100 inches, designed to enhance collaborative learning.

  This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

  High brightness and image quality

  Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors¹. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

  Dual pen

  Epson’s interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

  Highly reliable

  Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

  Interact and enhance learning

  Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

  Optional wireless capability

  Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App².

         Projection System

          3LCD Technology

         LCD Panel

         0.59 inch with D9

  • Image

    Colour Light Output

    3,500 Lumen- 2,900 Lumen (economy)

    White Light Output

    3,500 Lumen – 2,900 Lumen (economy) in accordance with ISO 21118:2012

    Resolution

    WXGA, 1280 x 800, 16:10

    High Definition

    HD ready

    Aspect Ratio

    16:10

    Contrast Ratio

    14,000 : 1

    Light source

    Lamp

    Lamp

    250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)

    Keystone Correction

    Manual vertical: ± 3 °, Manual horizontal ± 3 °

    Colour Processing

    10 Bits

    2D Vertical Refresh Rate

    100 Hz – 120 Hz

    Colour Reproduction

    upto 1.07 billion colours

  • Optical

    Projection Ratio

    0.28 – 0.37:1

    Zoom

    Digital, Factor: 1 – 1.35

    Lens

    Optical

    Image Size

    60 inches – 100 inches

    Projection Distance Wide

    0.4 m ( 60 inch screen)

    Projection Distance Tele

    0.6 m ( 100 inch screen)

    Projection Lens F Number

    1.6

    Focal Distance

    3.7 mm

    Focus

    Manual

    Offset

    5.8 : 1

  • Connectivity

    USB Display Function

    3 in 1: Image / Mouse / Sound

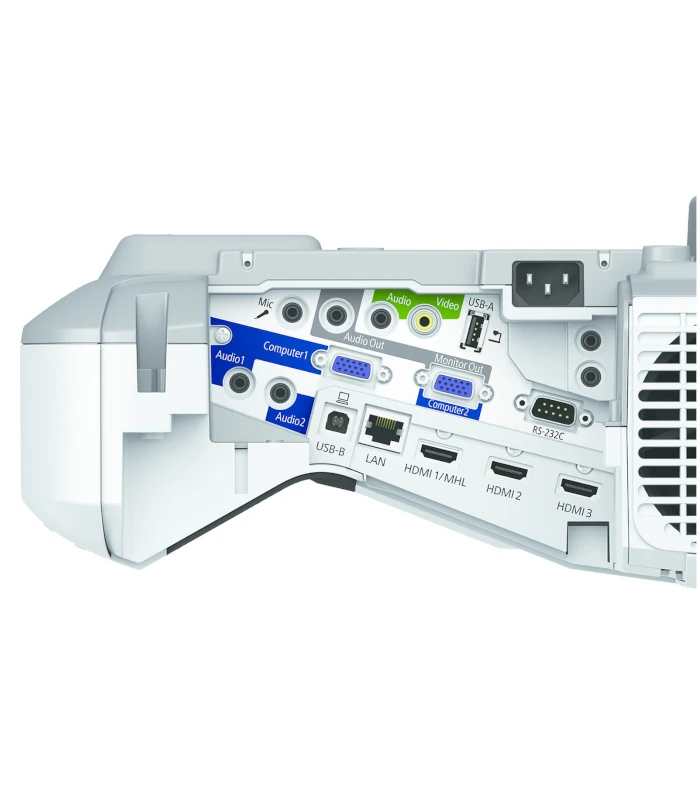

    Interfaces

    USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Sync. in, Sync. out

    Epson iProjection App

    Ad-Hoc / Infrastructure

  • Advanced Features

    Security

    Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

    2D Colour Modes

    Dynamic, Cinema, Presentation, sRGB, Blackboard

    Features

    AV mute slide, Auto calibration, Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Interactive, Long lamp life, MHL audio/video interface, Microphone input, spectextoptionfeaturesprojectorpcinteractive, PC free annotation, Split-Screen-Function

    Interactivity

    Yes- pen

    Video Colour Modes

    Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard

    Projector control

    via: AMX, Crestron (Network), Control4

  • General

    Energy Use

    354 Watt, 310 Watt (economy), 0.39 Watt (standby)

    Supply Voltage

    AC 100 V – 240 V, 50 Hz – 60 Hz

    Product dimensions

    367‎ x 400 x 149 mm (Width x Depth x Height)

    Product weight

    5.9 kg

    Noise Level

    Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A)

    Temperature

    Operation 5° C – 35° C, Storage -10° C – 60° C

    Humidity

    Operation 20% – 80%, Storage 10% – 90%
    If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

    Included Software

    Easy Interactive Tools, Epson Projector Management Software, EasyMP Multi PC Projection

    Options

    Air filter, Connection and control box, Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), USB extension cable, Wireless LAN unit

    Compatible Operating Systems

    Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1

    Loudspeaker

    16 Watt

    What’s in the box

    Interactive pens, Main unit, Pen tray, Power cable, Quick Start Guide, Remote control incl. batteries, USB cable, User Manual (CD-ROM), Wall hanging bracket, Warranty card

    Room Type / Application

    Collaboration space / Classroom

    Positioning

    Wall Mounted

    Colour

    White / Grey

    TCO Certified

    Yes
