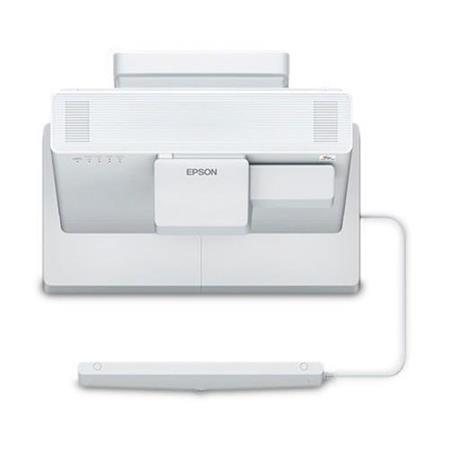

Epson EB-1485Fi LASER Interactive Projector

Epson EB-1485Fi LASER Interactive Projector Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.

• Projection System

  3LCD Technology

  LCD Panel

  0.62 inch with C2 Fine

• Image

  Color Light Output

  5,000 Lumen- 3,500 Lumen (economy)

  White Light Output

  5,000 Lumen – 3,500 Lumen (economy)

  Resolution

  Full HD 1080p, 1920 x 1080, 16:9

  Aspect Ratio

  16:9

  Contrast Ratio

  Over 2,500,000 : 1

  Light source

  Laser

  Lamp

  20,000 h durability, 30,000 h durability (economy mode)

  Laser Light source

  30,000 hours Durability Eco

  Keystone Correction

  Manual vertical: ± 3 °, Manual horizontal ± 3 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  192 Hz – 240 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  0.27 – 0.37:1

  Zoom

  Digital, Factor: 1 – 1.35

  Lens

  Optical

  Screen Size

  65 inches – 100 inches

  Projection Distance Wide

  0.4 m ( 65 inch screen)

  Projection Distance Tele

  0.6 m ( 100 inch screen)

  Projection Distance Wide/Tele

  0.78 m ( 120 inch screen)

  Projection Lens F Number

  1.5

  Projection Lens Focal Length

  3.9 mm

  Projection Lens Focus

  Manual

  Offset

  9 : 1

• Connectivity

  Interfaces

  USB 2.0 Type A (2x), Powered USB, RS-232C, Wired Network, Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Component in, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Finger-touch interface, Multi-Touch interface, USB 2.0 Type B (2x), Sync. in, Sync. out, HDMI out, HDBaseT

  Epson iProjection App

  Ad-Hoc / Infrastructure

  Network Protocol

  HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

• Advanced Features

  Security

  Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN security, Password protection

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM

  Interactivity

  Yes – pen and finger-touch

  Video Color Modes

  Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM

  Projector control

  via: AMX, Crestron, Extron, Crestron (RS-232c only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

• General

  Power consumption

  366 Watt, 262 Watt (economy), 0.5 Watt (standby)

  Heat Dissipation

  1,244 BTU/hour (max)

  Supply Voltage

  AC 220 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  458‎ x 375 x 210 mm (Width x Depth x Height)

  Product weight

  9.3 kg

  Noise Level

  Normal: 36 dB (A) – Economy: 27 dB (A)

  Supported Temperature

  Storage -10° C – 60° C

  Included Software

  Easy Interactive Tools, EasyMP Monitor

  Options

  Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), Wireless LAN unit

  Compatible Operating Systems

  Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000

  Loudspeaker

  16 Watt, Stereo: Stereo

  What’s in the box

  2 x Pen tip(Teflon), 4 x Pen tip(Felt), CD Manual, Cable cover, Control Box – HCB (HDBaseT Connection & Control Box), Finger touch unit, Interactive pens, Pen Holder/Stand, Power cable, Remote control incl. batteries, Replacement pen tips, Wall hanging bracket

  Positioning

  Table Mounted, Wall Mounted

  Colour

  White
