Epson EB-992F 4000 lumen Full HD Projector

Maximise your presentations with this bright Full HD projector that’s capable of producing a large and scalable screen size. The long-lasting lamp provides years of lessons before a replacement lamp is required or the air filter needs attention. It’s easy to set up and offers a range of connectivity solutions, so you can quickly access content from multiple devices.

Easy set up

Every working environment is different so you need a projector that is simple to set up and position. With our wide 1.6x optical zoom and vertical/horizontal keystone correction, it’s easy to get up and running quickly.

Utilise multiple devices

Capture your audiences’ attention and nurture a collaborative environment with hassle-free connectivity solutions. With the iProjection App¹, it’s easy to display content from PCs and smart devices. The split-screen function can be utilised to show content from multiple devices simultaneously, while the moderator function lets you review content before it is displayed. This projector has a built-in 16W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

• Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.61 inch with C2 Fine

• Image

  Color Light Output

  4,000 Lumen- 2,400 Lumen (economy) In accordance with IDMS15.4

  White Light Output

  4,000 Lumen – 2,400 Lumen (economy)

  Resolution

  Full HD 1080p, 1920 x 1080, 16:9

  High Definition

  Full HD

  Aspect Ratio

  16:9

  Contrast Ratio

  16,000 : 1

  Light source

  Lamp

  Lamp

  UHE, 230 W, 6,500 h durability, 17,000 h durability (economy mode)

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  100 Hz – 120 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.32 – 2.14:1

  Zoom

  Manual, Factor: 1 – 1.6

  Lens

  Optical

  Screen Size

  30 inches – 300 inches

  Projection Distance Wide/Tele

  1.76 m – 2.86 m ( 60 inch screen)

  Projection Lens F Number

  1.51 – 1.99

  Projection Lens Focal Length

  18.2 mm – 29.2 mm

  Projection Lens Focus

  Manual

  Offset

  10 : 1

• Connectivity

  USB Display Function

  3 in 1: Image / Mouse / Sound

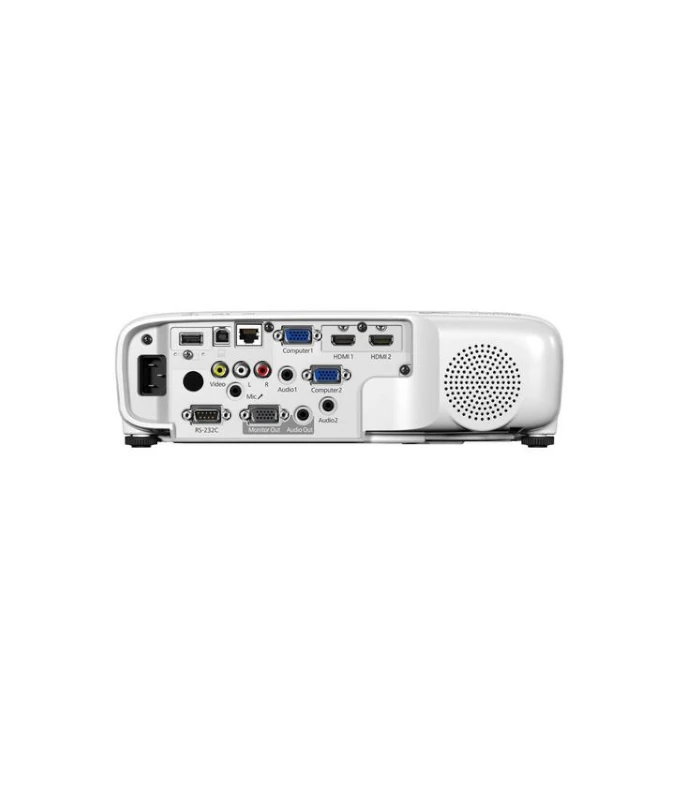

  Interfaces

  USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, VGA in (2x), VGA out, HDMI in (2x), Composite in, Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio out, Microphone input, Wireless LAN IEEE 802.11b/g/n, Miracast

  Epson iProjection App

  Ad-Hoc / Infrastructure

  Network Protocol

  PJLink

• Advanced Features

  Security

  Kensington lock, Control panel lock, Security cable hole, Wireless LAN security, Password protection

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Blackboard

  Other features

  AV Mute Slide, Automatic keystone correction, Built-in speaker, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by QR code

  Video Color Modes

  Blackboard, Cinema, Dynamic, Presentation, sRGB

  Projector control

  via: AMX, Crestron, Control4, Extron

• General

  Power consumption

  327 Watt, 225 Watt (economy)

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  309‎ x 282 x 90 mm (Width x Depth x Height)

  Product weight

  3.1 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Temperature

  Operation 5° C – 40° C, Storage -10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%
  If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

  Included Software

  iProjection

  Option

  Document camera, External Speaker, Soft carry case, Wireless LAN unit

  Loudspeaker

  16 Watt

  What’s in the box

  Main unit, Power cable, Quick Setup Guide, Remote control incl. batteries, User manual, Warranty document

  Room Type / Application

  Huddle space / Portable, Meeting room / Classroom

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White
