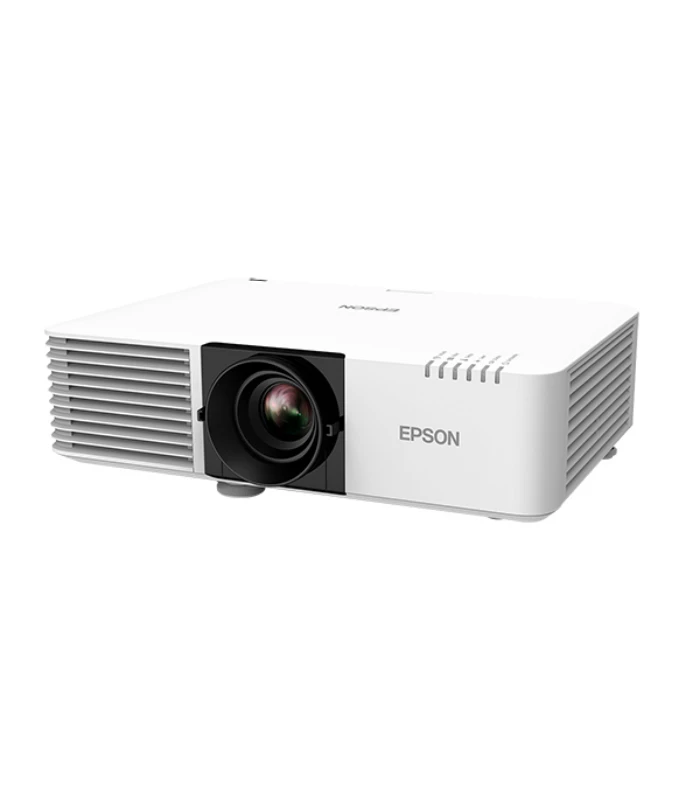

Epson EB-L520U 5,200 lumens Full HD WUXGA Projector

Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches, and offers a range of connectivity options to make content sharing an easy, seamless experience.

Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

Thanks to the renowned market leading² reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

• Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.67 inch with C2 Fine

• Image

  Color Light Output

  5,200 Lumen- 3,640 Lumen (economy) In accordance with IDMS15.4

  White Light Output

  5,200 Lumen – 3,640 Lumen (economy)

  Resolution

  WUXGA, 1920 x 1200, 16:10

  High Definition

  Full HD

  Aspect Ratio

  16:10

  Contrast Ratio

  2,500,000 : 1

  Light source

  Laser

  Laser Light source

  20,000 hours Durability High, 30,000 hours Durability Eco

  Keystone Correction

  Manual vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  192 Hz – 240 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.35 – 2.20:1

  Zoom

  Manual, Factor: 1 – 1.6

  Projection Lens Zoom Ratio

  1.35 – 2.2 : 1

  Lens

  Optical

  Screen Size

  50 inches – 500 inches

  Projection Lens F Number

  1.5 – 1.7

  Projection Lens Focal Length

  20 mm – 31.8 mm

  Projection Lens Focus

  Manual

  Offset

  27 : 1

• Connectivity

  USB Display Function

  3 in 1: Image / Mouse / Sound

  Interfaces

  RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Stereo mini jack audio out, Stereo mini jack audio in (2x), USB 2.0 Type A, USB 2.0 Type B

  Epson iProjection App

  Ad-Hoc / Infrastructure

• Advanced Features

  Security

  Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, DICOM SIM

  Other features

  Arc Correction, Built-in speaker, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Ultra-wide display (16:6), iProjection App

  Video Color Modes

  Cinema, Dynamic, Presentation, sRGB, DICOM SIM

  Projector control

  via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

• General

  Power consumption

  293 Watt, 223 Watt (economy), 0.3 Watt (standby)

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  440‎ x 122 x 304 mm (Width x Depth x Height)

  Product weight

  7.7 kg

  Noise Level

  Normal: 31 dB (A) – Economy: 23 dB (A)

  Supported Temperature

  Storage -10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%

  Included Software

  iProjection

  Options

  Document camera, External Speaker, HDBaseT Transmitter, Wireless LAN unit

  Loudspeaker

  10 Watt

  What’s in the box

  Power cable, Remote control incl. batteries, User guide, Warranty Documents

  Room Type / Application

  Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction

  Positioning

  Ceiling Mounted, Desktop, Floor, Wall Mounted

  Colour

  White
