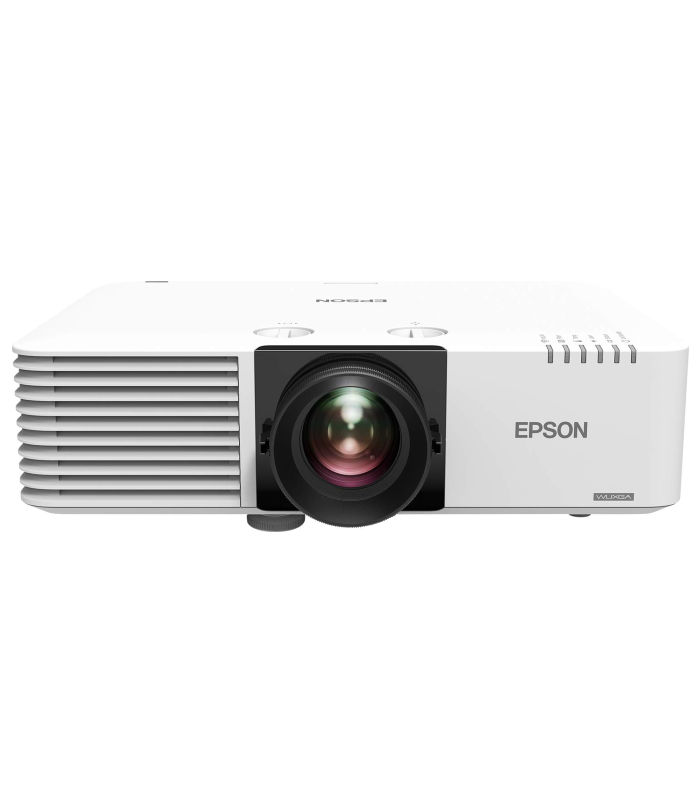

Epson EB-L530U WUXGA 5200 lumen Laser Projector
Epson EB-L530U WUXGA 3LCD Laser Projector
- 5,200-lumen brightness Crisp images and bright colours, even in well-lit rooms
- WUXGA resolution Sharp Full HD images for excellent clarity
- Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation Lightweight and compact design with wide lens shift
- Support social distancing Scalable display size of up to 500 inches
Description
Epson EB-L530U WUXGA 3LCD Laser Projector
Laser display solution
The EB-L530U fixed lens laser projector offers 5,200 lumens and is ideal for education, corporate, retail and visitor attractions.
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers even more effective, practical and creative display applications across a number of different industries.
The product features and specifications are subject to change without prior notice
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0.67 inch with C2 Fine
Color Light Output
5,200 Lumen- 3,640 Lumen (economy) In accordance with IDMS15.4
White Light Output
5,200 Lumen – 3,640 Lumen (economy) In accordance with ISO 21118:2020
Resolution
WUXGA, 1920 x 1200, 16:10
High Definition
Full HD
Aspect Ratio
16:10
Contrast Ratio
Over 2,500,000 : 1
Light source
Laser
Laser Light source
20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
1.35 – 2.20:1
Zoom
Manual, Factor: 1 – 1.6
Projection Lens Zoom Ratio
1.35 – 2.2 : 1
Lens
Optical
Lens Shift
Manual – Vertical ± 50 %, horizontal ± 20 %
Screen Size
50 inches – 500 inches
Projection Distance Wide
1.4 m – 14.8 m
Projection Distance Tele
2.4 m – 23.8 m
Projection Distance Wide/Tele
1.44 m – 23.84 m
Projection Lens F Number
1.5 – 1.7
Projection Lens Focal Length
20 mm – 31.8 mm
Projection Lens Focus
Manual
Connectivity
Interfaces
USB 2.0 Type A, USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/n (2.4GHz), Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security
Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features
A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes
Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption
293 Watt, 223 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 234 Watt
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
440 x 339 x 136 mm (Width x Depth x Height)
Product weight
8.2 kg
Noise Level
Normal: 31 dB (A) – Economy: 23 dB (A)
Supported Temperature
Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Options
Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit
Loudspeaker
10 Watt
What’s in the box
Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
Room Type / Application
Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning
Ceiling Mounted, Desktop
Colour
White
TCO Certified
For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
