Screen Size (Projected Distance):
Standard Size:100” screen 3.00 – 6.30 mZoom : Wide:50” – 300” [1.48 – 9.08 m]Zoom : Tele:50” – 300” [3.13 – 18.99 m]
Brightness*2:
White Light Output (Normal/Eco):2,600 lm / 640 lmColour Light Output:2,600 lm
Contrast Ratio:
Contrast Ratio:1,200,000:1
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30°
Connectivity:

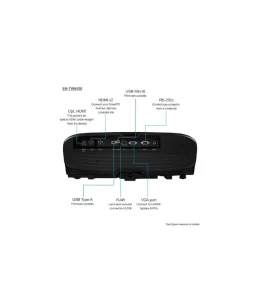

USB Interface:USB Type A: 2 (Right USB: Wireless LAN, Firmware Update, Copy OSD Settings) (Left USB: Opt. HDMI cable with 300mA power supply)
USB Type A: (Left USB: Opt. HDMI cable with 300mA power supply)
USB Type B: USB Mini-B x 1 (For Service and Firmware Update)Network:Wired LAN: RJ45 x 1; Wireless: Optional (ELPAP10)Analog Input:D-Sub 15 pin: 1 (Blue)Digital Input:HDM: 2 (one of terminal supports MHL)Control I/O:RS-232C: D-Sub 9pin x 1 Trigger Out (12V): 3.5mm Mini Jack x 1
Wireless Specifications (Wireless LAN):
Supported Speed for each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 130 Mbps*3Wireless LAN Security:WPA-PSK, WPA2-PSKSupported Connection Mode:Infrastructure, Access Point
Operating Altitude:
Operating Altitude:0 – 3048 m <0 -10000 ft> (over 1500 m / 4,921 ft : with high altitude mode)
Start-Up Period:
Start-Up Period:About 19 seconds
Warm-up period: 30 seconds
Direct Power On/Off:Yes / NA
Dimension Excluding Feet (W x H x D):520 x 170 x 450 mm
Fan Noise (Normal / Eco):31 dB / 20dB
Type:Power Zoom, Power FocusFocal Length:22.5 – 46.7 mmF-number:2.0 – 3.0Lens Shift:Vertical Lens Shift: ±96.3 % (H Center, Powered)
Horizontal Lens Shift: ±47.1 % (V Center, Powered)Zoom:1 – 2.1Throw Ratio Range:1.35 – 2.84
Supported Speed for Each Mode:IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless LAN Security:Quick: WPA2-PSK, Advanced: WPA/WPA-PSKSupported Connection Mode:Infrastructure, Access Point
Aspect Mode:Yes (Auto / Normal / Full / Zoom / Anamorphic Wide / Horiz.Squeeze)Frame Interpolation:Off / Low / Normal /High (2D and 3D Mode)
Image Preset Mode:Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)Mpeg Noise Reduction:YesSuper Resolution:Yes (Fine line adjust / Soft focus detail)Detail Enhancement:Yes (Range / Strength)
Operating Temperature:5 – 35 °C <41 – 95 °F> ( 0m / 0ft – 2,286m / 7,500ft )
5 – 30 °C <41 – 86 °F> ( over 2,286m / 7,500ft )
3D Display:Yes (Auto / 3D / 2D)3D Format:Side by Side / Top and Bottom3D Depth:-10 to +10
Projectors Facets:
4K Enhancement:Yes
