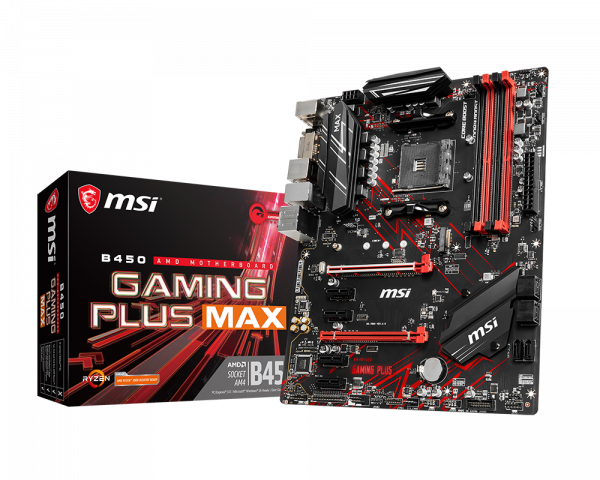

MSI B450 GAMING PLUS MAX Motherboard
MSI B450 GAMING PLUS MAX Motherboard Features:
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
Description
MSI B450 GAMING PLUS MAX Motherboard Description
Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector.
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
MSI B450 GAMING PLUS MAX Motherboard Specifications:
| Socket | AM4 |
| CPU (Max Support) | Ryzen |
| Chipset | AMD® B450 Chipset |
| DDR4 Memory | 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) |
| For AMD Ryzen Gen3 (R5/R7/R9) | |
| 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) | |
| For AMD Other CPU | |
| 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) | |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 64 |
| PCI-E x16 | 2 |
| PCI-E Gen | Gen3(PCI_E1), Gen2(PCI_E4) |
| PCI-E x1 | 4 |
| SATAIII | 6 |
| M.2 Slot | 1 |
| RAID | 0/1/10 |
| TPM (header) | 1 |
| LAN | 1x Realtek® 8111H |
| USB 3.2 ports (Front) | 2(Gen1, Type A) |
| USB 3.2 ports (Rear) | 2(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Serial ports(Front) | 1 |
| Audio ports (Rear) | Realtek® ALC892 Codec |
| DVI-D | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Y |
| Operating System | Support for Windows® 10 64-bit |
| Support for Windows® 7 64-bit | |
| * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
MSI B450 GAMING PLUS MAX Motherboard Catalog
