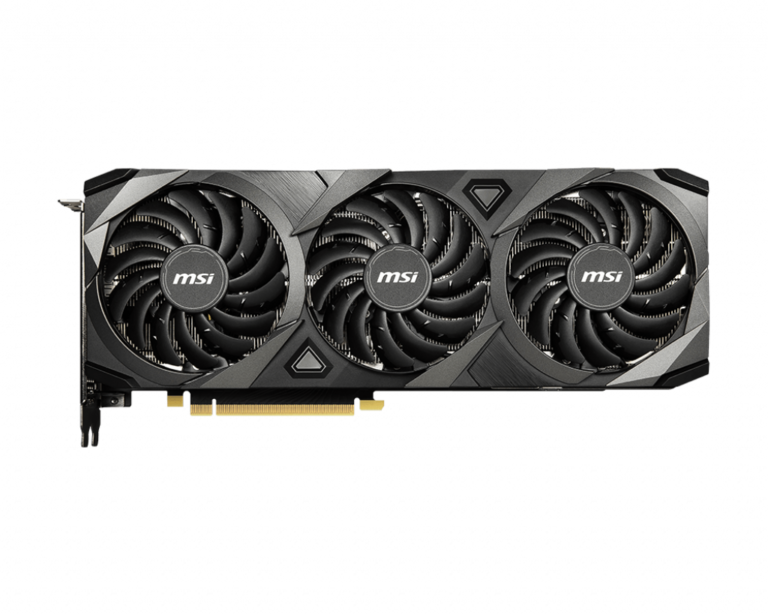

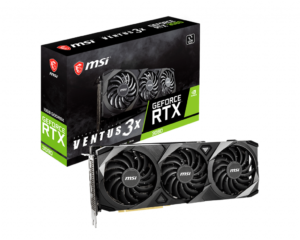

MSI GeForce RTX 3080 VENTUS 3X 10G LHR Graphic Card

The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.

• This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).

Core / Memory

• Boost Clock / Memory Speed
  1710 MHz / 19 Gbps
• 10GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Graphene Backplate

• A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.

Core Pipe

• Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

Triple Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

MSI Center

• The exclusive MSI Center softwar lets you monitor, tweak, and optimize MSI products in real-time.

Model Name                                                GeForce RTX™ 3080 VENTUS 3X 10G LHR
Graphics Processing Unit                         NVIDIA® GeForce RTX™ 3080
Interface                                                      PCI Express® Gen 4
Cores                                                            8704 Units
Core Clocks                                                 Boost: 1710 MHz
Memory Speed                                           19 Gbps
Memory                                                       10GB GDDR6X
Memory Bus                                               320-bIt
Output                                                    DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                                           Y
Power consumption                                320W
Power connectors                                    8-pin x 2
Recommended PSU                                750W
Card Dimension (mm)                           305 x 120 x 57 mm
Weight (Card / Package)                       1370g / 1986g
DirectX Version Support                      12 API
OpenGL Version Support                     4.6
Maximum Displays                                 4
VR Ready                                                   Y
G-SYNC® technology                             Y
Adaptive Vertical Sync                            Y
Digital Maximum Resolution               7680×4320
