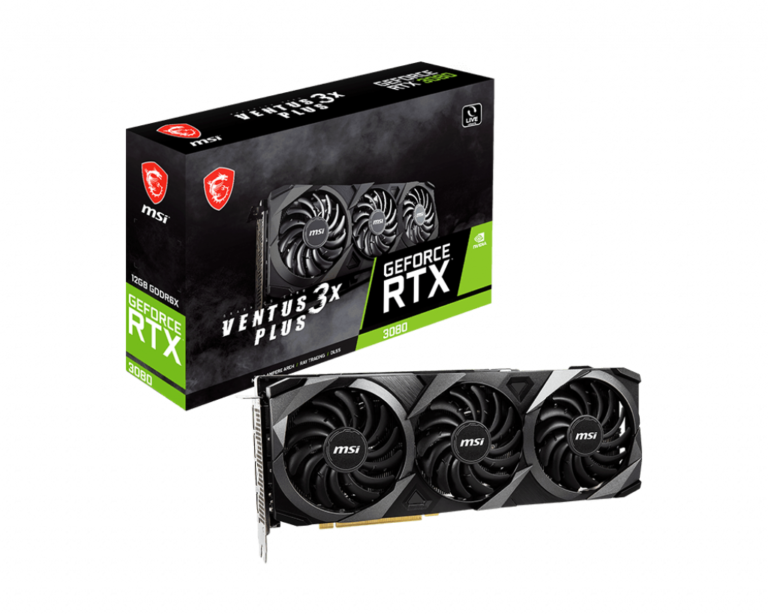

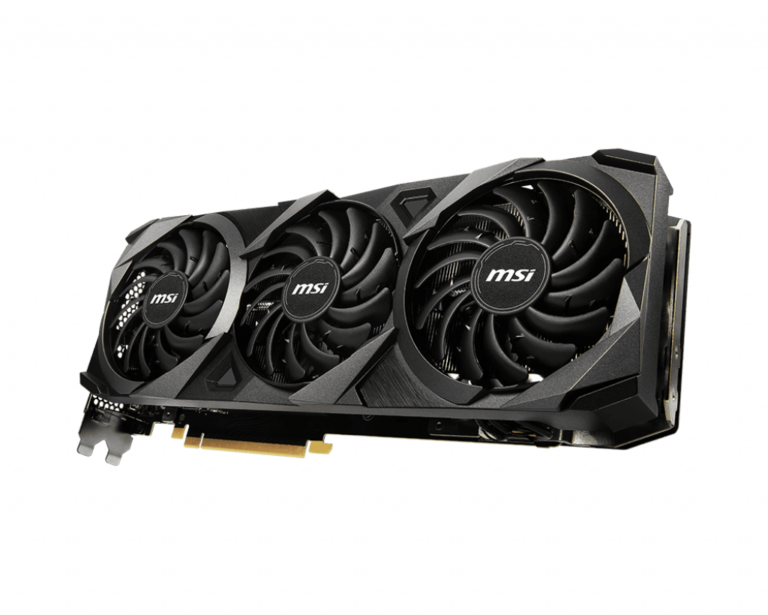

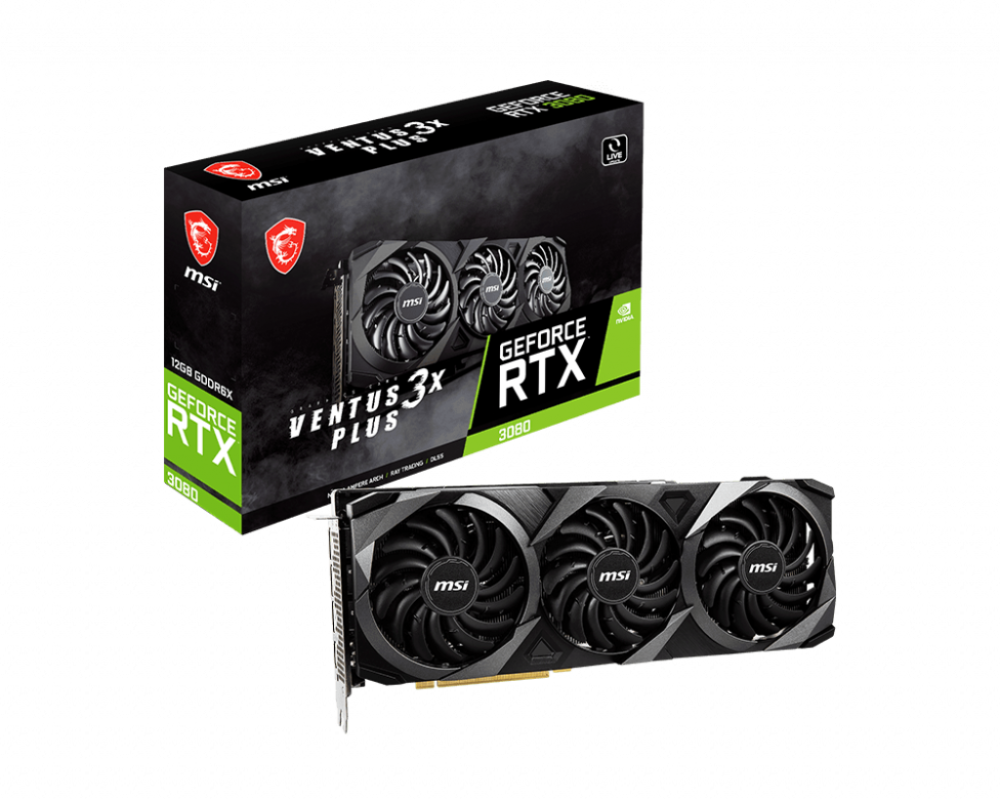

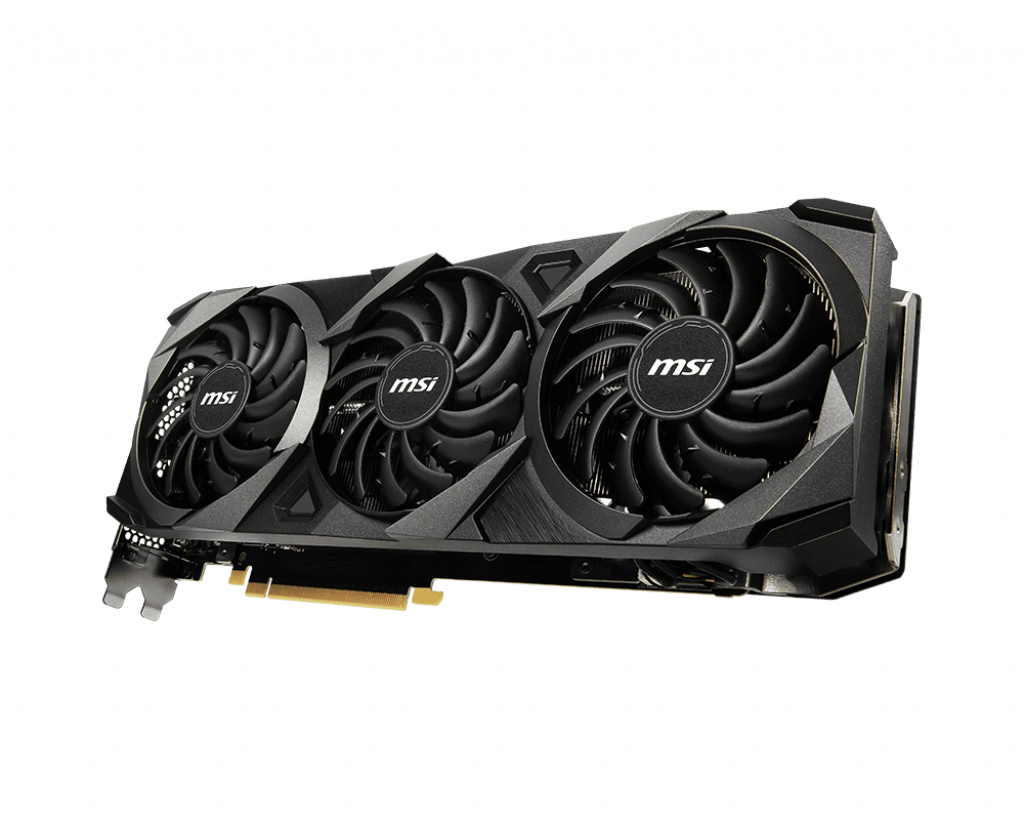

MSI GeForce RTX 3080 VENTUS 3X PLUS 12G LHR Graphic Card

The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.

Core / Memory

• Boost Clock / Memory Speed
  1710MHz / 19 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Triple Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

Metal Backplate

• A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.

Core Pipe

• Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

• LHR 52 MH/s ETH hash rate (est.)

Model Name                            GeForce RTX™ 3080 VENTUS 3X PLUS 12GLHR
Graphics Processing Unit     NVIDIA® GeForce RTX™ 3080
Interface                                   PCI Express® Gen 4
Cores                                        8960 Units
Core Clocks                             Boost: 1710MHz
Memory Speed                       19 Gbps
Memory                                   12GB GDDR6X
Memory Bus                           384-bit
Output
DisplayPort x 3 (v1.4a)
HDMI 2.1 x 1 (Supports 4K@120Hz as
specified in HDMI 2.1)
HDCP Support Y
Power consumption 350W
Power connectors 8-pin x 2
Recommended PSU 750W
Card Dimension (mm) 305 x 120 x 57 mm
Weight (Card / Package) 1362g / 1986g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
G-SYNC® technology Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680 x 4320

Model Name                                   GeForce RTX™ 3080 VENTUS 3X PLUS 12G LHR
Graphics Processing Unit            NVIDIA® GeForce RTX™ 3080
Interface                                          PCI Express® Gen 4
Cores                                                8960 Units
Core Clocks                                     Boost: 1710MHz
Memory Speed                               19 Gbps
Memory                                           12GB GDDR6X
Memory Bus                                   384-bit
Output                                             DisplayPort x 3 (v1.4a) HDMI 2.1 x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                               Y
Power consumption                      350W
Power connectors                          8-pin x 2
Recommended PSU                      750W
Card Dimension (mm)                 305 x 120 x 57 mm
Weight (Card / Package)             1362g / 1986g
DirectX Version Support            12 API
OpenGL Version Support          4.6
Maximum Displays                     4
VR Ready                                      Y
G-SYNC® technology                Y
Adaptive Vertical Sync               Y
Digital Maximum Resolution    7680 x 4320
