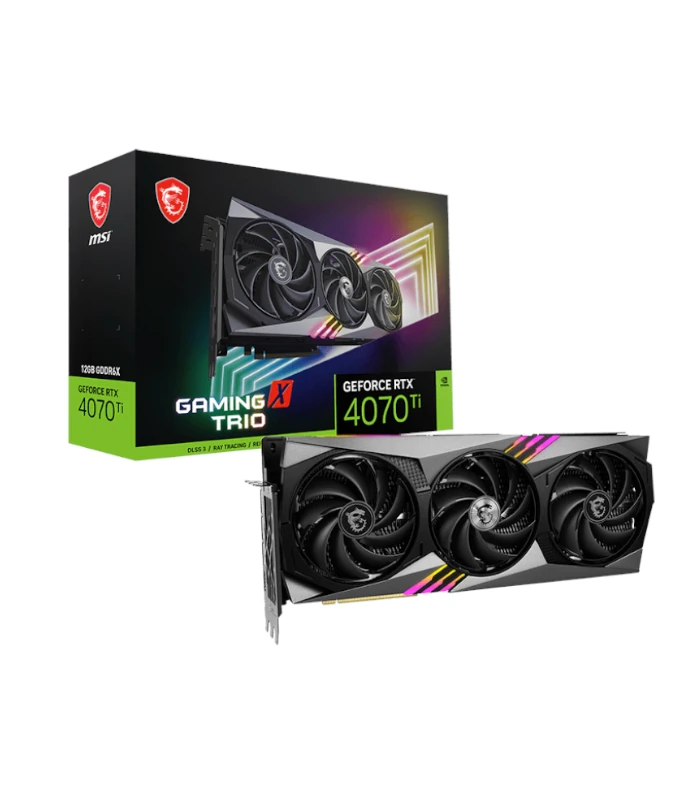

MSI GeForce RTX™ 4070 Ti GAMING X TRIO 12G Graphic Card
MSI GeForce RTX™ 4070 Ti GAMING X TRIO 12G Graphic Card
PCI Express® Gen 4
Extreme Performance: 2760 MHz (MSI Center)
Boost: 2745 MHz (GAMING & SILENT Mode)
Boost: 2745 MHz (GAMING & SILENT Mode)
7680 Units
21 Gbps
12GB GDDR6X
192-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Description
MSI GeForce RTX™ 4070 Ti GAMING X TRIO 12G Graphic Card
GeForce RTX™ 4070 Ti GAMING X TRIO 12G
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2745 MHz (GAMING & SILENT Mode) / 21 Gbps
- 12GB GDDR6X

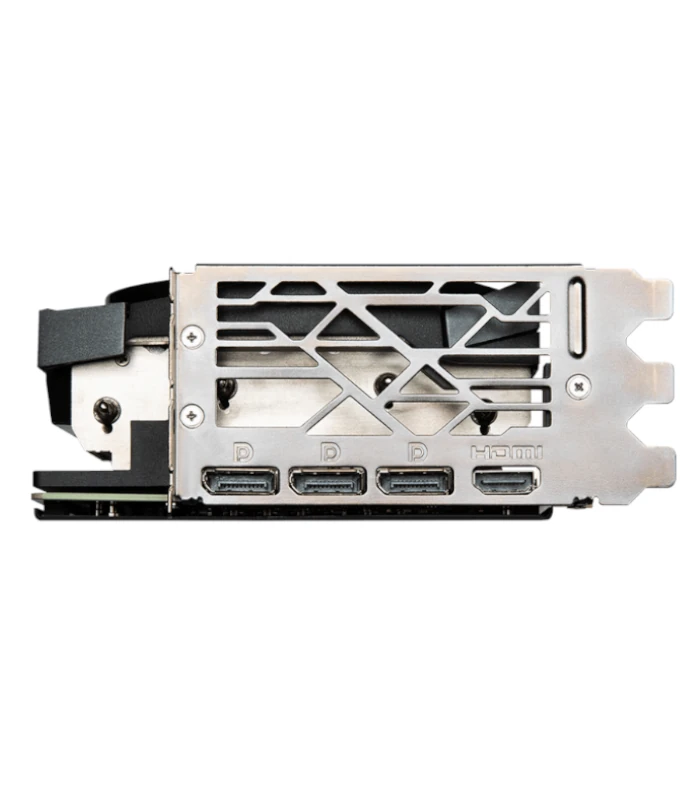

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

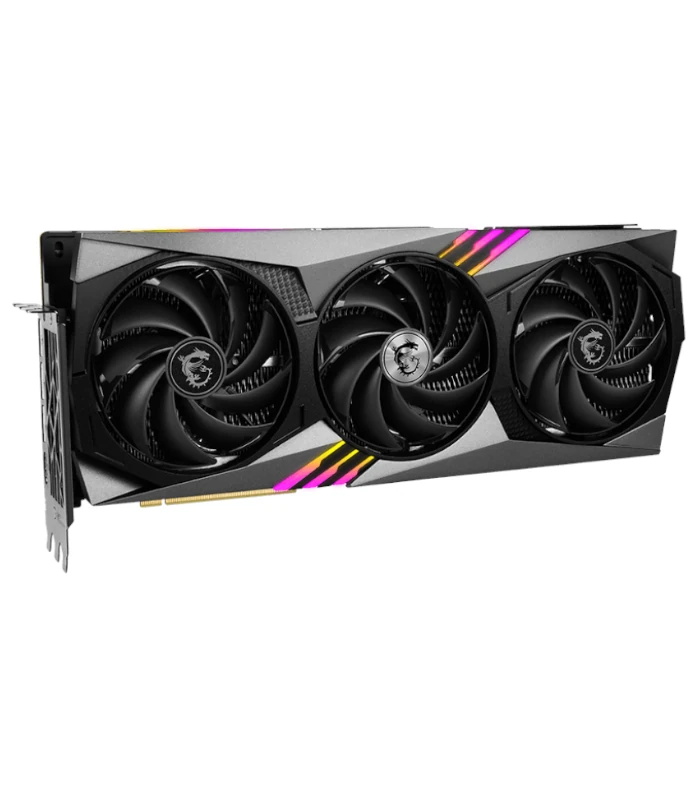

TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Model Name |
GeForce RTX™ 4070 Ti GAMING X TRIO 12G |
Graphics Processing Unit |
NVIDIA® GeForce RTX™ 4070 Ti |
Interface |
PCI Express® Gen 4 |
Core Clocks |
Extreme Performance: 2760 MHz (MSI Center)Boost: 2745 MHz (GAMING & SILENT Mode) |
CUDA® CORES |
7680 Units |
Memory Speed |
21 Gbps |
Memory |
12GB GDDR6X |
Memory Bus |
192-bit |
Output | DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
HDCP Support |
Y |
Power consumption |
285 W |
Power connectors |
16-pin x 1 |
Recommended PSU |
700 W |
Card Dimension (mm) |
337 x 140 x 62 mm |
Weight (Card / Package) |
1613 g / 2522 g |
DirectX Version Support |
12 Ultimate |
OpenGL Version Support |
4.6 |
Maximum Displays |
4 |
G-SYNC® technology |
Y |
Digital Maximum Resolution |
7680 x 4320 |
