MSI GeForce RTXâ„¢ 4070 Ti VENTUS 3X 12G Graphic Card
MSI GeForce RTXâ„¢ 4070 Ti VENTUS 3X 12G Graphic Card
- Boost Clock / Memory Speed
Extreme Performance: 2655MHz (MSI Center)
Boost: 2640MHz
21 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMIâ„¢ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Description

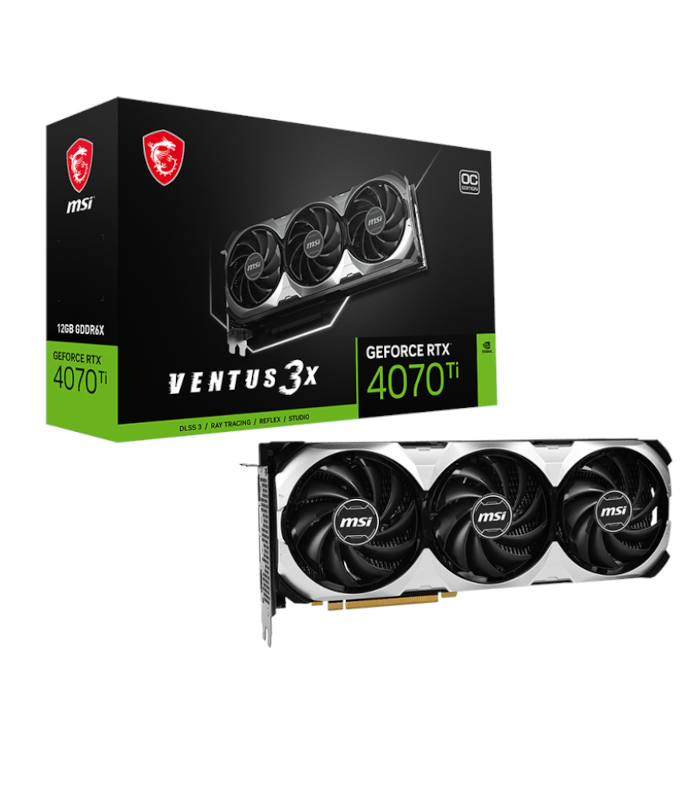

MSI GeForce RTXâ„¢ 4070 Ti VENTUS 3X 12G Graphic Card
GeForce RTXâ„¢ 4070 Ti VENTUS 3X 12G
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- Boost Clock / Memory Speed
Extreme Performance: 2625MHz (MSI Center)
Boost: 2610MHz
21 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMIâ„¢ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

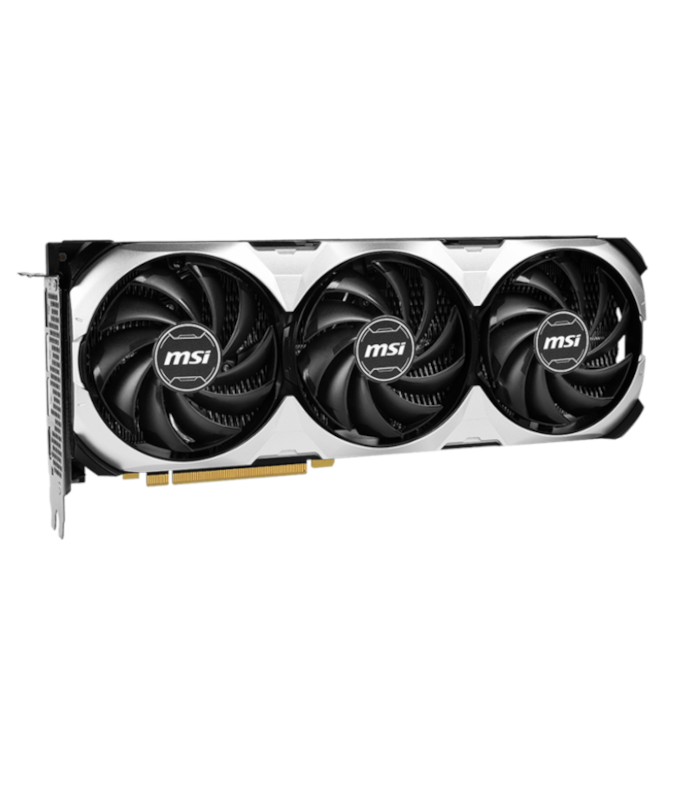

Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Metal Backplate
- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
| Model Name | GeForce RTXâ„¢ 4070 Ti VENTUS 3X 12G |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4070 Ti |
| Interface | PCI Express® Gen 4 |
| Core Clocks | Extreme Performance: 2625MHz (MSI Center) Boost: 2610MHz |
| CUDA® CORES | 7680 Units |
| Memory Speed | 21 Gbps |
| Memory | 12GB GDDR6X |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3 (v1.4a) HDMIâ„¢ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| HDCP Support | Y |
| Power consumption | 285W |
| Power connectors | 16pin x 1 |
| Recommended PSU | 700W |
| Card Dimension (mm) | 308 x 123 x 52 mm |
| Weight (Card / Package) | 1150g / 1722g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
