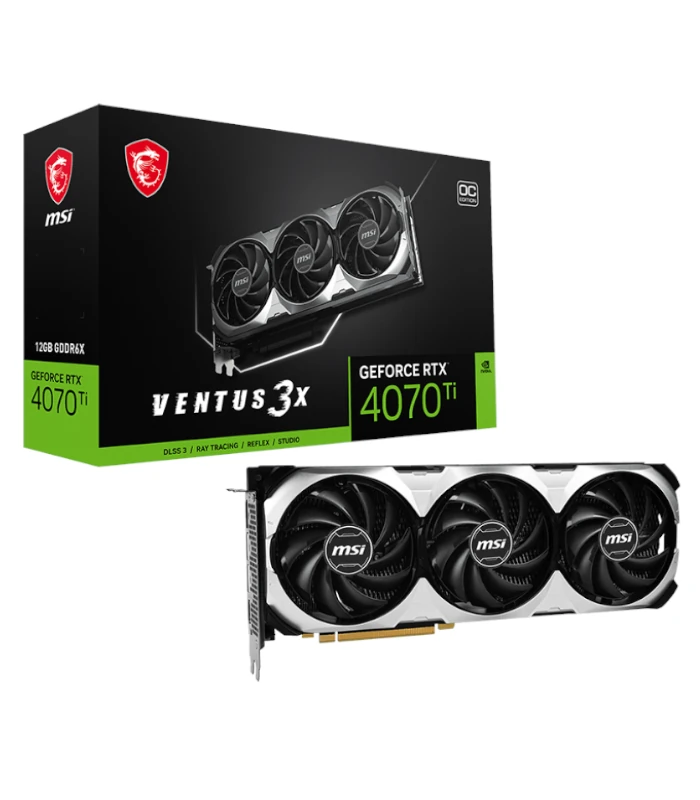

MSI GeForce RTX™ 4070 Ti VENTUS 3X 12G OC Graphic Card
MSI GeForce RTX™ 4070 Ti VENTUS 3X 12G OC Graphic Card
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
Boost: 2640 MHz
7680 Units
21 Gbps
12GB GDDR6X
192-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Description
MSI GeForce RTX™ 4070 Ti VENTUS 3X 12G OC Graphic Card
MSI GeForce RTX™ 4070 Ti VENTUS 3X 12G OC Graphic Card
GeForce RTX™ 4070 Ti VENTUS 3X 12G OC
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- Boost Clock / Memory Speed
Extreme Performance: 2655MHz (MSI Center)
Boost: 2640MHz
21 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

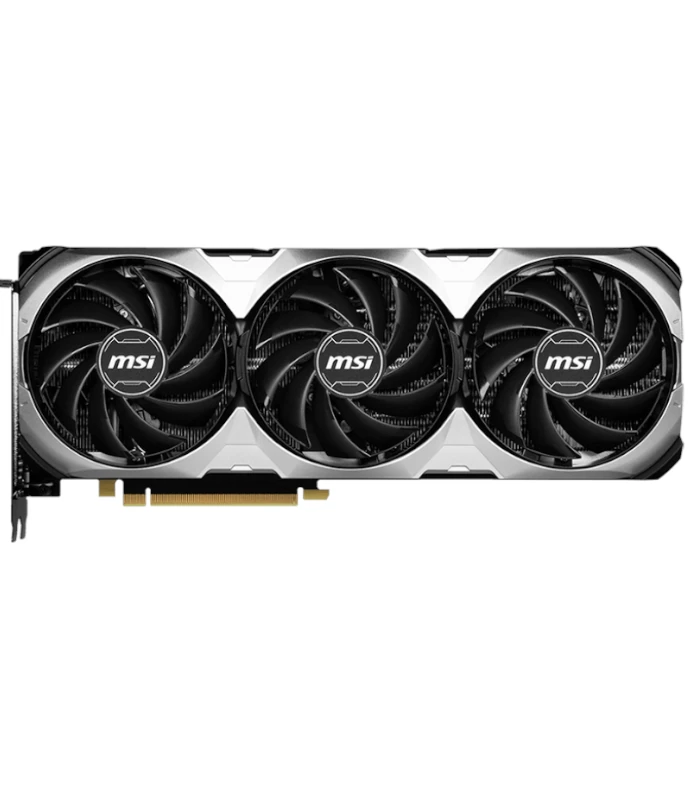

Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

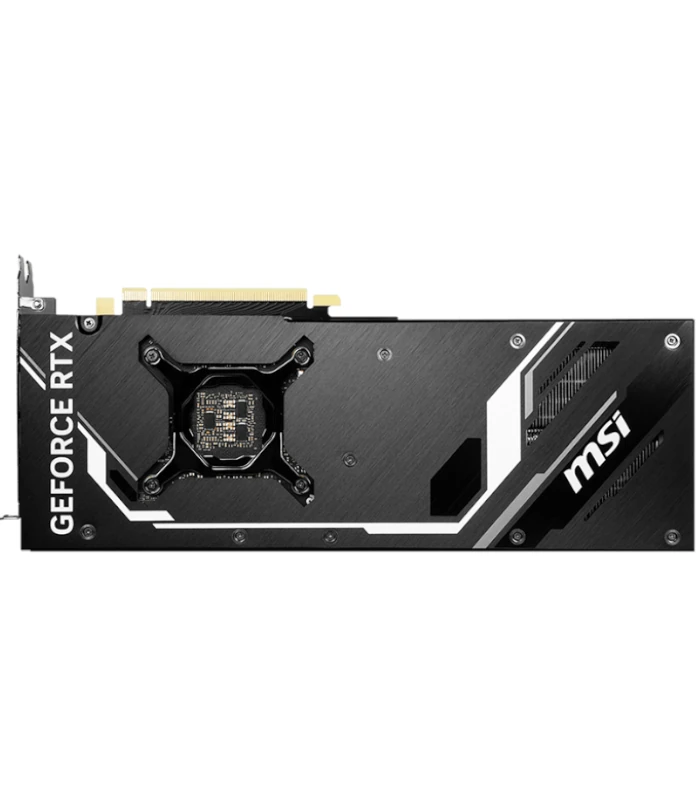

Metal Backplate
- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Model Name |
GeForce RTX™ 4070 Ti VENTUS 3X 12G OC |
Graphics Processing Unit |
NVIDIA® GeForce RTX™ 4070 Ti |
Interface |
PCI Express® Gen 4 |
Core Clocks |
Extreme Performance: 2655 MHz (MSI Center)Boost: 2640 MHz |
CUDA® CORES |
7680 Units |
Memory Speed |
21 Gbps |
Memory |
12GB GDDR6X |
Memory Bus |
192-bit |
Output |
DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
HDCP Support |
Y |
Power consumption |
285W |
Power connectors |
16pin x 1 |
Recommended PSU |
700W |
Card Dimension (mm) |
308 x 123 x 52 mm |
Weight (Card / Package) |
1150g / 1722g |
DirectX Version Support |
12 Ultimate |
OpenGL Version Support |
4.6 |
Maximum Displays |
4 |
G-SYNC® technology |
Y |
Digital Maximum Resolution |
7680 x 4320 |
