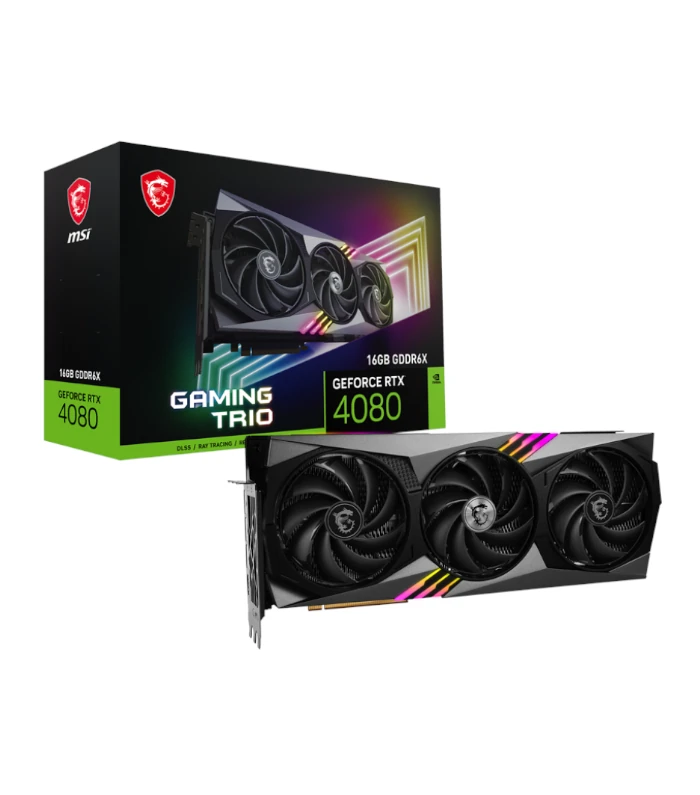

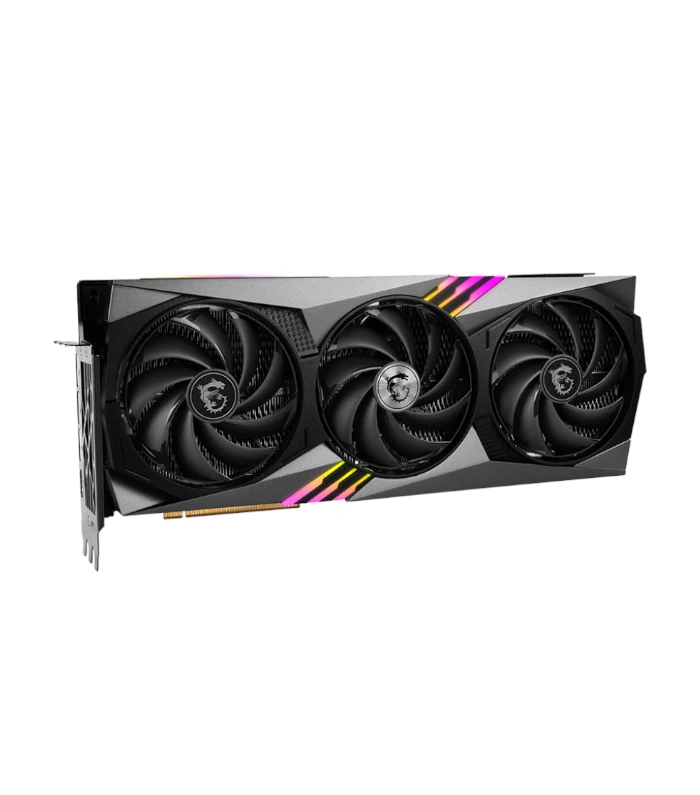

MSI GeForce RTX™ 4080 16GB GAMING TRIO Graphic Card
MSI GeForce RTX™ 4080 16GB GAMING TRIO Graphic Card
PCI Express® Gen 4
Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz (GAMING & SILENT Mode)
Boost: 2505 MHz (GAMING & SILENT Mode)
9728 Units
22.4 Gbps
16GB GDDR6X
256-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Description
MSI GeForce RTX™ 4080 16GB GAMING TRIO Graphic Card
GeForce RTX™ 4080 16GB GAMING TRIO
WITH DLSS 3
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
Boost Clock / Memory Speed
- 2505 MHz / 22.4 Gbps
- 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Model Name | GeForce RTX™ 4080 16GB GAMING TRIO |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 4080 16GB |
Interface | PCI Express® Gen 4 |
Core Clocks | Extreme Performance: 2520 MHz (MSI Center)Boost: 2505 MHz (GAMING & SILENT Mode) |
CUDA® CORES | 9728 Units |
Memory Speed | 22.4 Gbps |
Memory | 16GB GDDR6X |
Memory Bus | 256-bit |
Output | DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
HDCP Support | Y |
Power consumption | 320 W |
Power connectors | 16-pin x 1 |
Recommended PSU | 850 W (Min.750W) |
Card Dimension (mm) | 337 x 140 x 67 mm |
Weight (Card / Package) | 1876 g / 2816 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
VR Ready | Y |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680×4320 |
