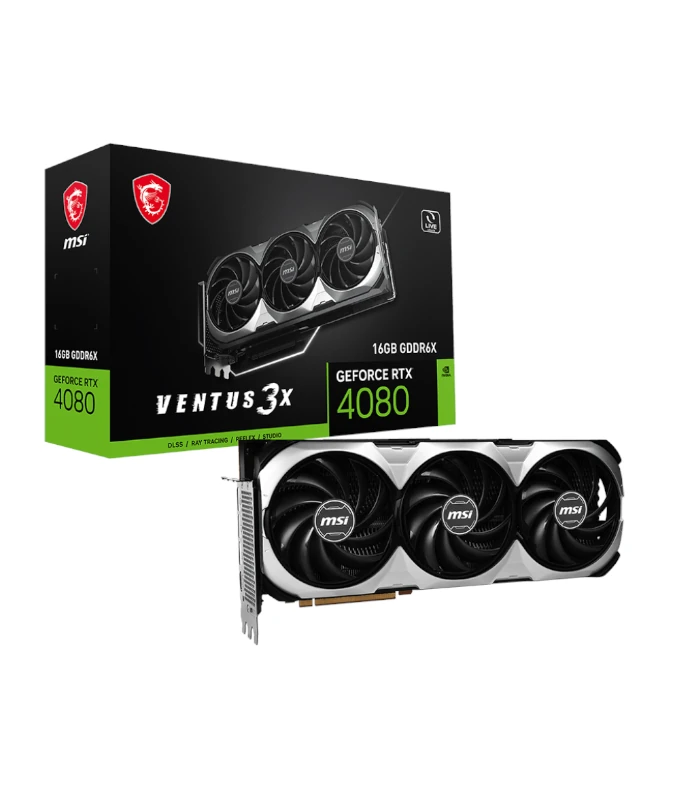

MSI GeForce RTX™ 4080 16GB VENTUS 3X Graphic Card
MSI GeForce RTX™ 4080 16GB VENTUS 3X Graphic Card
PCI Express® Gen 4
Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz
Boost: 2505 MHz
9728 Units
22.4 Gbps
16GB GDDR6X
256-bit

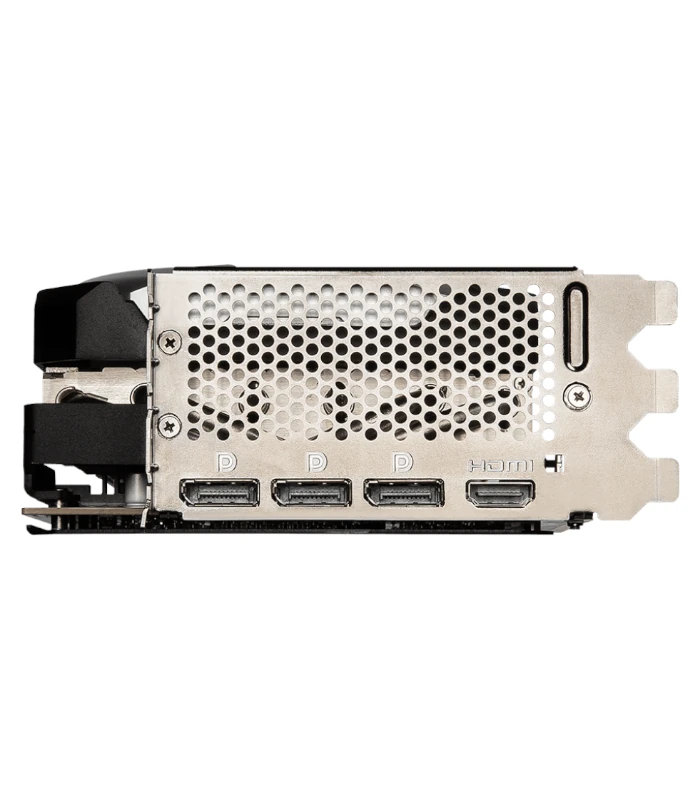

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Description
MSI GeForce RTX™ 4080 16GB VENTUS 3X Graphic Card
GeForce RTX™ 4080 16GB VENTUS 3X
WITH DLSS 3
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
Boost Clock / Memory Speed
- Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz
22.4 Gbps - 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

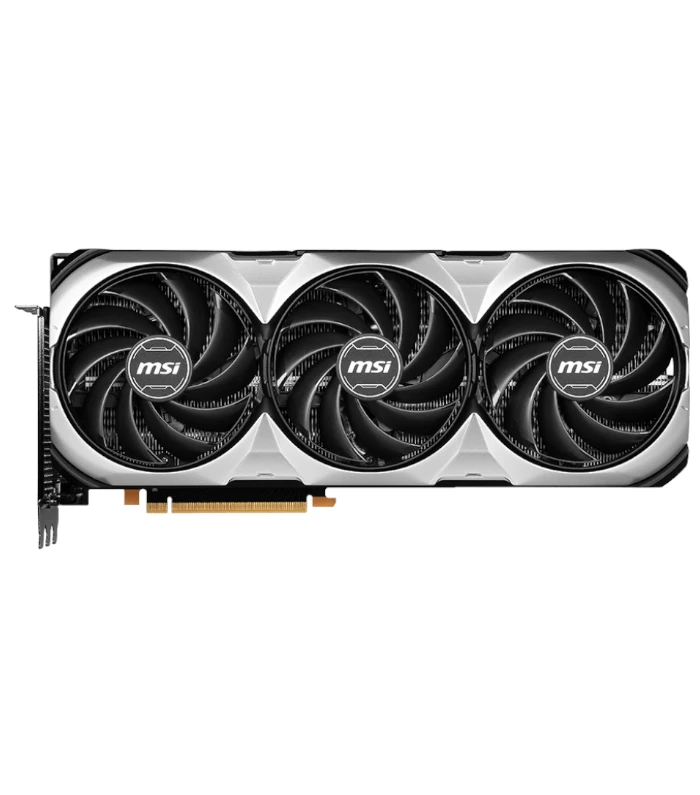

Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Metal Backplate
- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Model Name | GeForce RTX™ 4080 16GB VENTUS 3X |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 4080 16GB |
Interface | PCI Express® Gen 4 |
Core Clocks | Extreme Performance: 2520 MHz (MSI Center)Boost: 2505 MHz |
CUDA® CORES | 9728 Units |
Memory Speed | 22.4 Gbps |
Memory | 16GB GDDR6X |
Memory Bus | 256-bit |
Output | DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
HDCP Support | Y |
Power consumption | 320W |
Power connectors | 16pin x 1 |
Recommended PSU | 750W |
Card Dimension (mm) | 322 x 136 x 63mm |
Weight (Card / Package) | 1595g / 2200g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
