MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card
MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card
PCI Express® Gen 4
Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
Boost: 2535 MHz
9728 Units
22.4 Gbps
16GB GDDR6X
256-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Description

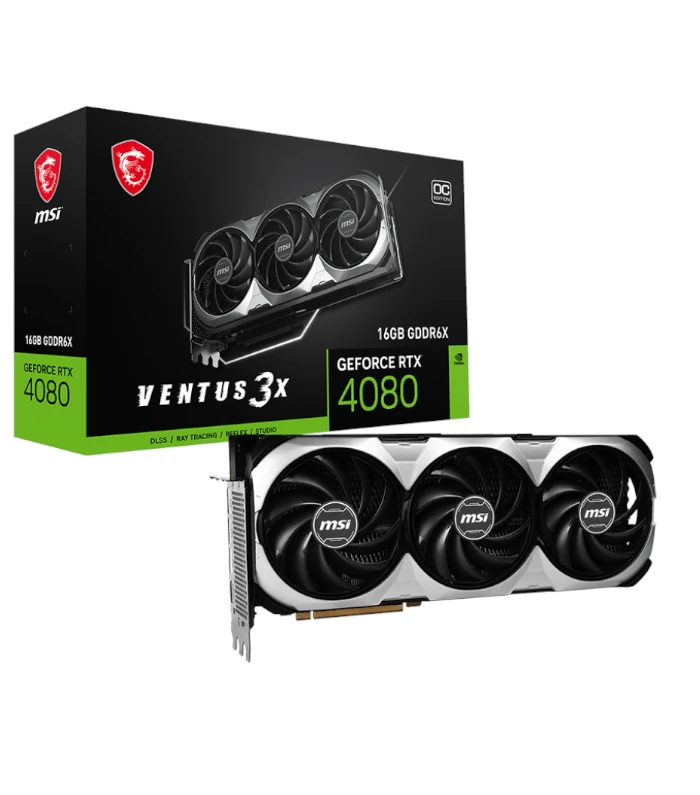

MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card
GeForce RTX™ 4080 16GB VENTUS 3X OC
WITH DLSS 3
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
Boost Clock / Memory Speed
- Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
22.4 Gbps - 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

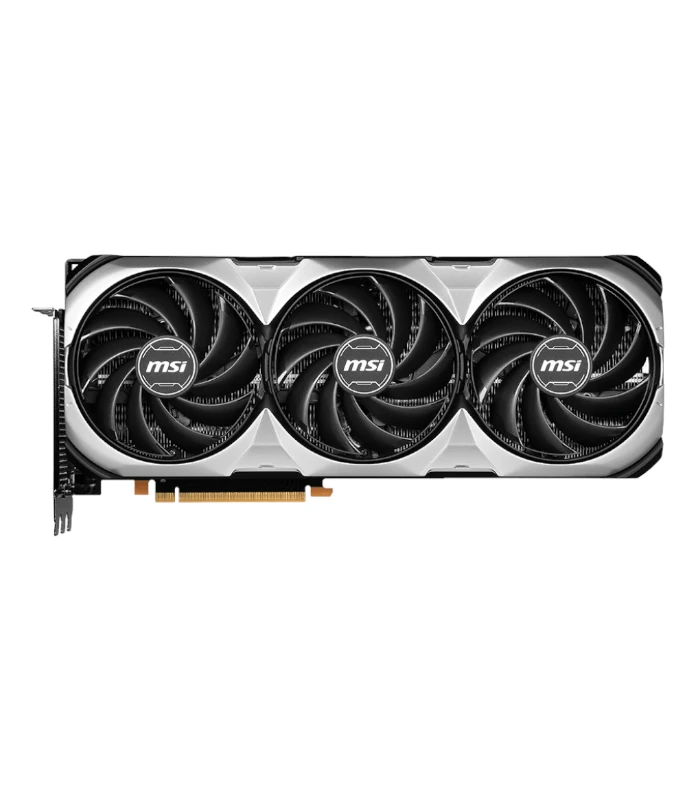

Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

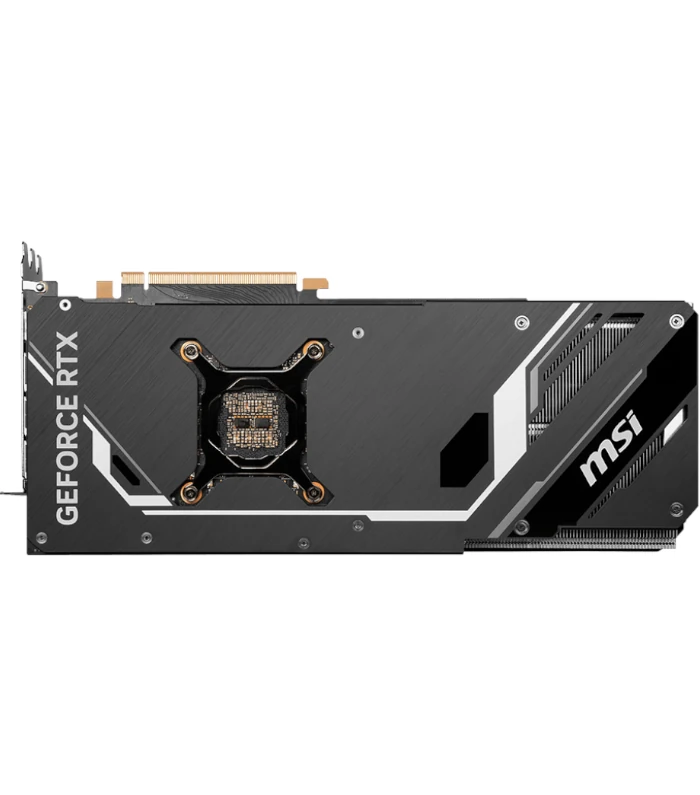

Metal Backplate
- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Model Name |
GeForce RTX™ 4080 16GB VENTUS 3X OC |
Graphics Processing Unit |
NVIDIA® GeForce RTX™ 4080 16GB |
Interface |
PCI Express® Gen 4 |
Core Clocks |
Extreme Performance: 2550 MHz (MSI Center)Boost: 2535 MHz |
CUDA® CORES |
9728 Units |
Memory Speed |
22.4 Gbps |
Memory |
16GB GDDR6X |
Memory Bus |
256-bit |
Output |
DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
HDCP Support |
Y |
Power consumption |
320W |
Power connectors |
16pin x 1 |
Recommended PSU |
750W |
Card Dimension (mm) |
322 x 136 x 63mm |
Weight (Card / Package) |
1595g / 2200g |
DirectX Version Support |
12 Ultimate |
OpenGL Version Support |
4.6 |
Maximum Displays |
4 |
G-SYNC® technology |
Y |
Digital Maximum Resolution |
7680 x 4320 |
