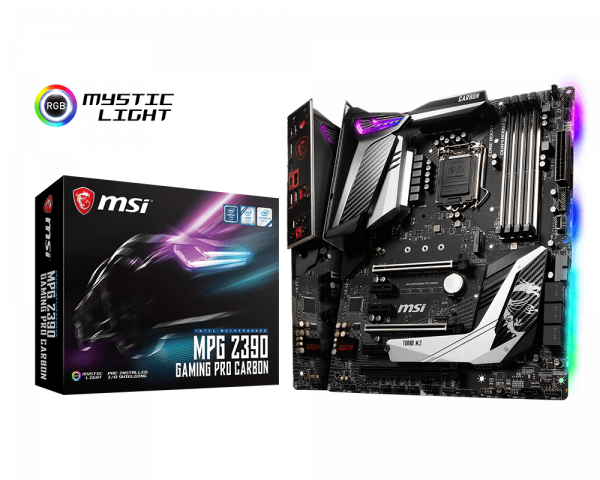

MSI MPG Z390 GAMING PRO CARBON Motherboard

MSI MPG Z390 GAMING PRO CARBON Motherboard

MSI MPG Z390 GAMING PRO CARBON Motherboard

MSI MPG Z390 GAMING PRO CARBON Motherboard Features:

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Add to Wishlist loading
Add to quote
Category: Tag:

Description

MSI MPG Z390 GAMING PRO CARBON Motherboard Description

MSI MPG Z390 GAMING PRO CARBON Motherboard inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector

Specifications:

PROCESSORSupports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSETIntel® Z390 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
  • 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz
  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”

MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. M.2 slots and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO

Realtek® ALC1220P-VB2 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.1 Gen2 Type-C port
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 5x 4-pin system fan connectors
  • 1x Serial port connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Thunderbolt Add-on Card Connector
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 2x 4-pin RGB LED connectors
  • 1x 3-pin RAINBOW LED connector
  • 1x 3-pin CORSAIR LED connector
BACK PANEL PORTS
  1. PS/2 Combo Port
  2. LAN
  3. HD Audio Connectors
  4. USB 2.0
  5. DisplayPort
  6. HDMI
  7. USB 3.1 Gen2 Type-A + C
  8. USB 3.1 Gen2 Type-A
  9. Optical S/PDIF out
DIMENSIONS
  • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
  • ATX Form Factor
MOUNTING9 mounting holes
OPERATING SYSTEMSupport for Windows® 10 64-bit

MSI MPG Z390 GAMING PRO CARBON Motherboard Catalog
