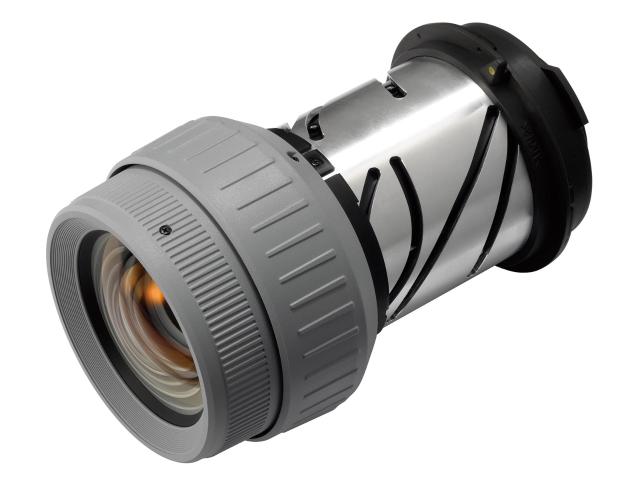

NEC NP-13ZL OPTION FOR PA SERIES LENS PROJECTOR
NEC NP-13ZL OPTION FOR PA SERIES LENS PROJECTOR Features:
- Cornerstone
- Geometric correction to project an image on more non-standard surfaces
- Stacking correction to boost image brightness
- Centre lens design for easy setup
- Lens memory
- Carbon meter to check the amount of reduction of CO2 in eco mode
- Seamless switch function for smoother screen changes when switching the signal
- Network control
- NaViSet Administrator 2
- PC control
- Alert mail
- CRESTRON ROOMVIEW
- AMX BEACON
- PJLink
- HTTP server (projector adjustment)
- Wall colour correction
- PIN security / control panel lock / security bar / security slot
- DICOM simulation
Description
NEC NP-13ZL OPTION FOR PA SERIES LENS PROJECTOR Description
Professional projectors of high performance and brighter LCD models that are lightweight and compact Professional Installation Projector.A compact projector solution for large venue applications and vertical markets boasts Ultra HD support, wider colour space, scaling, resolution and reduced maintenance.
Features:
- Cornerstone
- Geometric correction to project an image on more non-standard surfaces
- Stacking correction to boost image brightness
- Centre lens design for easy setup
- Lens memory
- Carbon meter to check the amount of reduction of CO2 in eco mode
- Seamless switch function for smoother screen changes when switching the signal
- Network control
- NaViSet Administrator 2
- PC control
- Alert mail
- CRESTRON ROOMVIEW
- AMX BEACON
- PJLink
- HTTP server (projector adjustment)
- Wall colour correction
- PIN security / control panel lock / security bar / security slot
- DICOM simulation
Optional Lens specifications
| MODEL | NP44ML* | NP11FL | NP30ZL | |
|---|---|---|---|---|
| LENS TYPE | Fixed Ultra Short Throw Lens |
Fixed Short Throw Lens |
Zoom Lens (Short Throw) |
|
| ZOOM / FOCUS | Motorised (Focus) | Manual(Focus) | Manual | |
| F# (WIDE – TELE) | 2.0 | 2.3 | 1.9 – 2.1 | |
| F (MM) | 6.27 | 13.2 | 13.2 – 17.2 | |
| THROW RATIO (WUXGA @ 100 INCH) |
0.32:1 | 0.79:1 | 0.79 – 1.04:1 | |
| ZOOM RATIO | – | – | 1.3 | |
| SCREEN SIZE (INCH) (PERFORMANCE GUARANTEE RANGE) |
80 – 400 (100 – 350) |
40 – 160** (60 – 150) |
50 – 500 (60 – 180) |
|
| LIGHT OUTPUT | NP-PA803U | 6,240 lumens | 5,400 lumens | 7,600 lumens |
| NP-PA723U | 5,610 lumens | 4,800 lumens | 6,800 lumens | |
| NP-PA653U | 5,070 lumens | 4,400 lumens | 6,200 lumens | |
| NP-PA853W | 6,630 lumens | 6,000 lumens | 8,100 lumens | |
| NP-PA703W | 5,460 lumens | 5,000 lumens | 6,700 lumens | |
| NP-PA903X | 7,020 lumens | 6,800 lumens | 8,600 lumens | |
| WEIGHT | 3.1 kg | 1.2 kg | 1.14 kg | |
| MODEL | NP12ZL | NP13ZL | NP14ZL | NP40ZL | NP41ZL | NP43ZL | |
|---|---|---|---|---|---|---|---|
| LENS TYPE | Zoom Lens | ||||||
| ZOOM / FOCUS | Manual | Motorised | |||||
| F# (WIDE – TELE) | 2.2 – 2.7 | 1.7 – 2.4 | 2.2 – 2.6 | 2.0 – 2.5 | 1.7 – 2.0 | 2.2 – 2.6 | |
| F (MM) | 19.4 – 25.3 | 24.4 – 48.6 | 48.5 – 77.6 | 13.3 – 18.6 | 21.8 – 49.7 | 49.7 – 99.8 | |
| THROW RATIO (WUXGA @ 100 INCH) |
1.16 – 1.52:1 | 1.46 – 2.95:1 | 2.90 – 4.68:1 | 0.79 – 1.11:1 | 1.30 – 3.02:1 | 2.99 – 5.93:1 | |
| ZOOM RATIO | 1.3 | 2.0 | 1.6 | 1.4 | 2.3 | 2.0 | |
| SCREEN SIZE (INCH) (PERFORMANCE GUARANTEE RANGE) |
30 – 500 (40 – 200) |
60 – 500 (60 – 200) |
50 – 500 (80 – 200) |
||||
| LIGHT OUTPUT | NP-PA803U | 5,800 lumens | 8,000 lumens | 6,100 lumens | 6,800 lumens | 8,000 lumens | 5,700 lumens |
| NP-PA723U | 5,300 lumens | 7,200 lumens | 5,500 lumens | 6,100 lumens | 7,200 lumens | 5,400 lumens | |
| NP-PA653U | 4,800 lumens | 6,500 lumens | 5,000 lumens | 5,500 lumens | 6,500 lumens | 5,100 lumens | |
| NP-PA853W | 6,400 lumens | 8,500 lumens | 6,500 lumens | 7,200 lumens | 8,500 lumens | 5,700 lumens | |
| NP-PA703W | 5,300 lumens | 7,000 lumens | 5,400 lumens | 5,900 lumens | 7,000 lumens | 5,400 lumens | |
| NP-PA903X | 7,100 lumens | 9,000 lumens | 7,400 lumens | 7,600 lumens | 9,000 lumens | 5,400 lumens | |
| WEIGHT | 1.2 kg | 0.84 kg | 1.0 kg | 1.6 kg | 1.8 kg | 1.8 kg | |
- *After installing the lens unit NP44ML on the projector, be sure to secure it to the projector using the support kit (NP01LK) sold separately.
- *The lens unit NP44ML does not support LENS CALIBRATION, LENS SHIFT and LENS MEMORY.
- **WUXGA and WXGA models: 40–150 inch
