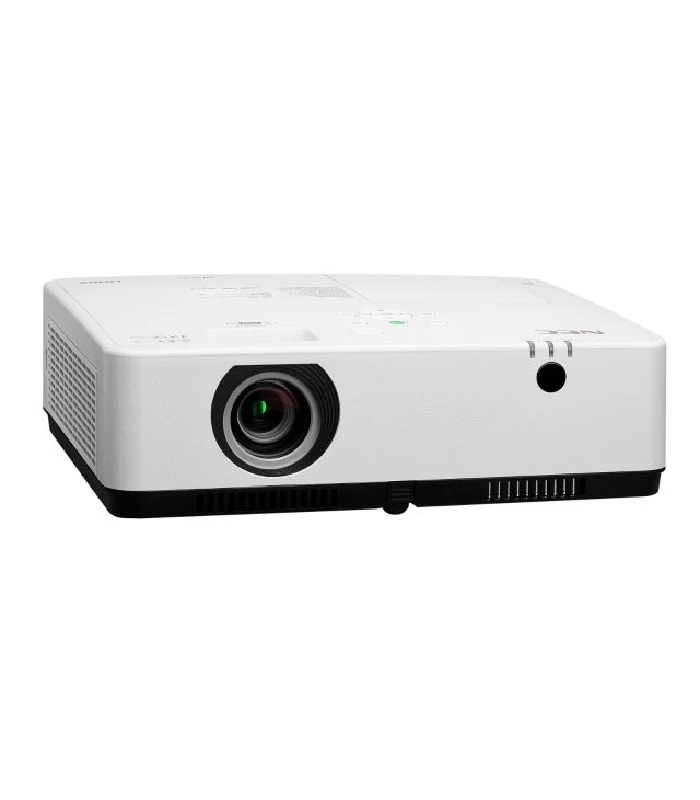

NEC ME383W Professional Business Projector

Description

NEC ME383W Professional Business Projector

Bringing exceptional long lamp life performance to the classroom and small meeting room, for classic presentation usage the new generation ME series delivers standard throw projection that’s anything but standard. Keeping operational costs to a minimum with no lamp costs to factor in, users enjoy up to 20,000 hours of trouble-free projection and no lamp replacement efforts.

A large 1.7x optical zoom brings impressive integration flexibility making it easier to position the projector in the room, whilst existing ceiling mount locations can be utilised without the need to reposition.

For seamless hand-over between presenters, the projector provides advanced wireless capabilities with an embedded MultiPresenter function, allowing multiple users to connect and share content without having to switch cables.

Benefits

• Minimized cost of ownership – due to long lamp life and filter exchange intervals.
• Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker.
• Display content that demands attention – with WXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
• Wide array of flexible application scenarios – thanks to multi-source conferencing and efficient split-screen operation supported by a wide future-ready range of digital connectivity.
• IMAGE


  Projection Technology	3LCD Technology
  Native Resolution	1280 x 800 (WXGA)
  Aspect Ratio	16:10
  Contrast Ratio 1	16000:1
  Brightness 1	3600 ANSI Lumen
  Brightness (Boost Mode)	3800 ANSI Lumen
  Lamp	225 W AC (151 W AC Eco Mode)
  Light Source Life [hrs]	10000 (20000 Eco Mode)
  Lens	F= 1.7–2.2, f= 17.4–29 mm
  Keystone correction	+/- 30° manual horizontal / +/- 30° manual vertical
  Projection Angle [°]	6.6 – 11.1
  Projection Factor	1.2 – 2.1 : 1
  Projection Distance [m]	0.94 – 11.59
  Screen Size (diagonal) [cm] / [inch]	Maximum: 762 / 300″; Minimum: 76 / 30″
  Zoom	Manual; x1.7
  Focus Adjustment	Manual
  Supported Resolutions	1920×1200 (Maximum resolution of analog input)
  Frequency	Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

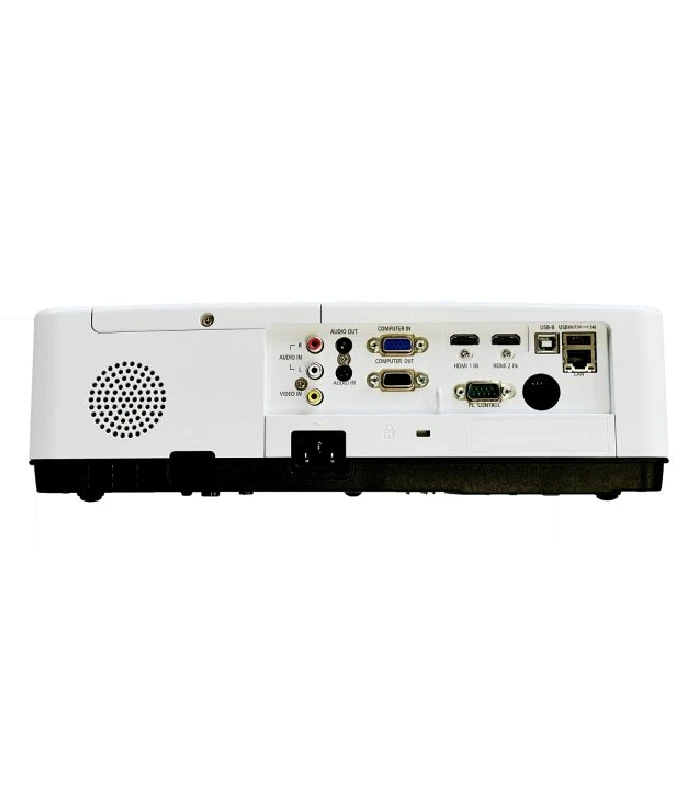

  CONNECTIVITY

  RGB (analog)	Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr) Output: 1 x Mini D-sub 15 pin
  Digital	Input: 2 x HDMI™ (Deep Color, Lip sync)
  Video	Input: 1 x RCA
  Audio	Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo Output: 1 x 3.5 mm Stereo Mini Jack (variable)
  Control	Input: 1 x D-Sub 9 pin (RS-232) (male)
  LAN	1 x RJ45; Optional WLAN
  USB	1 x Type B; 1x Type A (USB 2.0 high speed) with 1.5 Power Supply
  Video Signals	NTSC; PAL; PAL60; SECAM

  REMOTE CONTROL

  Remote Control

  Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select

  ELECTRICAL

  Power Supply	100-240 V AC; 50 – 60 Hz
  Power Consumption [W]	288 (High Bright) / 196 (Eco) / 1.5 (Network Stand-by) / 0.5 (Stand-by)

  MECHANICAL

  Dimensions (W x H x D) [mm]	345 x 104.6 x 261 (without lens and feet)
  Weight [kg]	3.2
  Fan Noise [dB (A)]	29 / 37 (Eco / Normal)

  ENVIRONMENTAL CONDITIONS

  Operating Temperature [°C]	5 to 40
  Operating Humidity [%]	20 to 80
  Storage Temperature [°C]	-10 to 50
  Storage Humidity [%]	20 to 80

  ERGONOMICS

  Safety and Ergonomics	CE; EAC; ErP; RoHS; TUEV Type Approved; WEEE
  Speakers [W]	1 x 16 (mono)

  ADDITIONAL FEATURES

  Special Characteristics

  Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Keystone Correction (H=±30°, V=±30°); Lens Cover; Magnify; NaViSet Administrator 2; Off-Timer; Optional WLAN; OSD with 29 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display; USB Viewer for JPEG; Wall Colour Correction

  GREEN FEATURES

  Energy Efficiency	75 % AV mute function; Auto ECO Mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent Power Management; Longer Light Source Life; Reduced power consumption. Only 0.45W stand-by; Software scheduling
  Ecological Materials	100% recyclable packaging; Downloadable manuals; ECO packaging
  Ecological Standards	ErP compliant; RoHs compliant; WEEE

  SHIPPING CONTENT

  Shipping Contents

  IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
