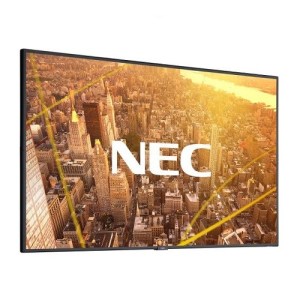

NEC MultiSync C551Q 55″ LCD Large Format Display
MultiSync® C551
LCD 55″ Value Large Format Display
| Haze Level [%] | 44 |
| Power Consumption [W] | 75 |
| Operating Hours | 24/7 |
| Panel Technology | AMVA3 |
| Brightness [cd/m²] | 400 |
| Resolution | 1920 x 1080 |
Description
DISPLAY
| Panel Technology | AMVA3 with Edge LED backlights |
| Active Screen Area (W x H) [mm] | 1,210 x 680 |
| Screen Size [inch/cm] | 55 / 138.8 |
| Brightness [cd/m²] | 400, 280 Eco (shipment setting) |
| Contrast Ratio (typ.) | 4000:1 |
| Viewing Angle [°] | 178 / 178 (at contrast ratio > 10:1) |
| Colour Depth [bn] | 1.073 (10bit) |
| Response Time (typ.) [ms] | 8 (grey-to-grey) |
| Haze Level [%] | Pro (44) |
| Supported Orientation | Face Up; Landscape; Portrait |
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 31.5 – 91.1 (analog and digital) |
| Vertical Frequency [Hz] | 24 – 85 |
RESOLUTION
| Native Resolution |
1920 x 1080
|
| Supported Resolutions |
1920 x 1200;1920 x 1080;1680 x 1050;1600 x 1200;1440 x 900;1400 x 1050;1360 x 768;1280 x 1024;1280 x 960;1280 x 800;1280 x 768;1280 x 720;1024 x 768;800 x 600
|
CONNECTIVITY
| Input Video Analogue | 1 x VGA |
| Input Video Digital | 1 x DisplayPort (with HDCP); 3 x HDMI (with HDCP) |
| Input Audio Analogue | 2 x 3,5 mm jack |
| Input Audio Digital | 1 x DisplayPort; 3 x HDMI |
| Input Control | 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232 |
| Input Data | 1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Output Control | remote control wire (3,5mm jack) |
SENSORS
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
| Power Consumption [W] | 75 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
MECHANICAL
| Dimensions (W x H x D) [mm] | 1,238 x 709 x 45 |
| Weight [kg] | 18.8 |
| Bezel Width [mm] | 12.4 (left and right); 12.4 (top and bottom) |
| VESA Mounting [mm] | 300 x 300 (FDMI); 4 holes; M6 |
| Ingress Protection | IP5X (front); IP2X (back) |
MEDIAPLAYER
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000 |
| Supported Video Formats | MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling |
| Supported File Storage / File System | MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32 |
AVAILABLE OPTIONS
| Accessories | Feet (ST-401); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P) |
GREEN FEATURES
| Energy Efficiency | Ambient light sensor; Annual energy consumption: 120 kWh (based on 4 operating hours per day); Carbon savings meter; Energy efficiency class: A+ |
| Ecological Materials | Manuals on CD; Optional feet |
| Ecological Standards | EnergyStar 7.0 |
ADDITIONAL FEATURES
| Special Characteristics | Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Automated Email Alert; CEC Support; Crestron Connected Support; Crestron RoomView Support; Display Browser Control; Emergency Notification; Full System Scheduler; KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2; OmniColor Control; OSD rotation for portrait mode; PJLink Support; Powered USB-Port; Removable Logo; Secure Mode Operation; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10) |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Safety and Ergonomics | CE; EMC Class B; FCC; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 2 |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | CD-ROM (User Guides/Manuals); Display; Power Cable; Remote Control; VGA cable |
| Warranty | 3 years warranty incl. backlight; additional services available |
| Operating Hours | 24/7 |
