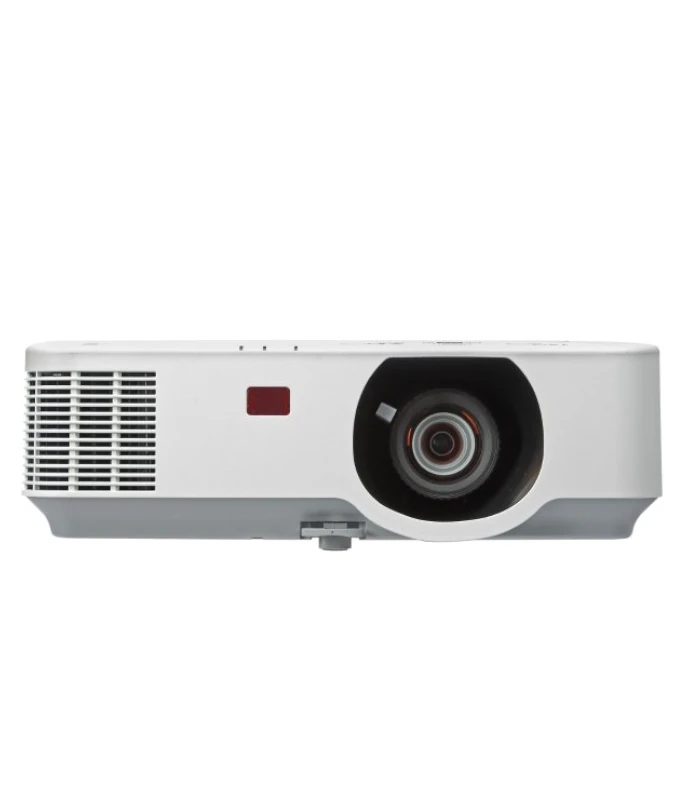

NEC NP-P603X 6000 Lumens Professional Projector
NEC NP-P603X 6000 Lumens Professional Projector Features:
| Type | LCD |
| Brightness [AL] | 6000 |
| Contrast | 20000:1 |
| Resolution | 1024 x 768 |
| Light Source | Lamp |
| Lamp Life [h] | 8000 |
| Weight [kg] | 4.7 |
| Order Code | 60004331 |
Description
Nec P603X, 6000 Lumens Projector Description
The NEC P603X brings brightness of up to 6,000 ANSI lumen to your meeting and learning spaces. Enjoy smooth operation over five years* with low maintenance, long lamp life and the NEC patented LCD panel dust protection. The NEC P603X is the perfect replacement device for preceding models because it offers the same mounting options and with its wide zoom range, it is easy to adjust the projection to the existing screen.
Nec P603X, 6000 Lumens Projector
| Projection Technology | 3LCD Technology |
| Native Resolution | 1024 x 768 (XGA) |
| Contrast Ratio 1 | 20000:1 |
| Brightness 1 | 6000 Normal / 3600 Eco ANSI Lumen; 6300 Centre Lumen |
| Lamp | 330 W UHP AC |
| Lamp Life [hrs] | 4000 (8000 Eco Mode) |
| Lens | F= 1.7–2.2, f= 17.4–29 mm |
| Lens shift | H:±0.15, V:+50,-0 |
| Keystone correction | +/- 20° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.3 – 2.2 : 1 |
| Projection Distance [m] | 0.8 – 13.5 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300″; Minimum: 76 / 30″ |
| Zoom | 1 – 1.7; Manual |
| Focus Adjustment | Manual |
| Supported Resolutions | Up to 1920 x 1200 (WUXGA) |
| Frequency | Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 50 – 120 Hz |

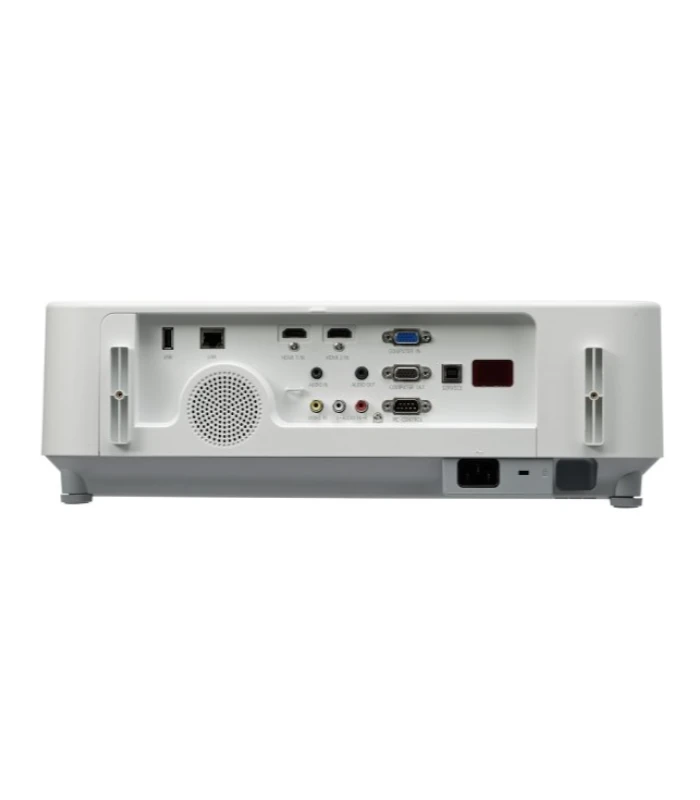

CONNECTIVITY
| RGB (analog) | Input: 1 x Mini D-sub 15 pin Output: 1 x Mini D-sub 15 pin |
| Digital | Input: 2 x HDMI™ (Deep Color, Lip sync) with HDCP |
| Video | Input: 1 x RCA |
| Audio | Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video; 2 x HDMI audio Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control | Input: 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed); 1 x Type B |
| Video Signals | NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM |
| Dimensions (W x H x D) [mm] | 420 x 133 x 322 (without lens and feet) |
| Weight [kg] | 4.7 |
| Fan Noise [dB (A)] | 34 / 37 (Eco / Normal) |
ADDITIONAL FEATURES
| Special Characteristics | Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Contrast Ratio 20000:1 with Iris; Control ID Function; DICOM Simulation; Direct Power-Off Function; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; LAN; Lens Shift (vertical 0 max/50 max, horizontal ± 15 max.); Magnify; Manual Wall Color Correction; NaViSet Administrator 2; Off-Timer; Optional User Logo; OSD with 27 languages; Password Security System; Pincushion Correction; Quick Start; Test Pattern; Unique Power Saving Functions; Up to 8,000 hrs lamp life; Virtual Remote for direct PC control |
NEC NP-P603X 6000 Lumens Professional Projector Catalog
