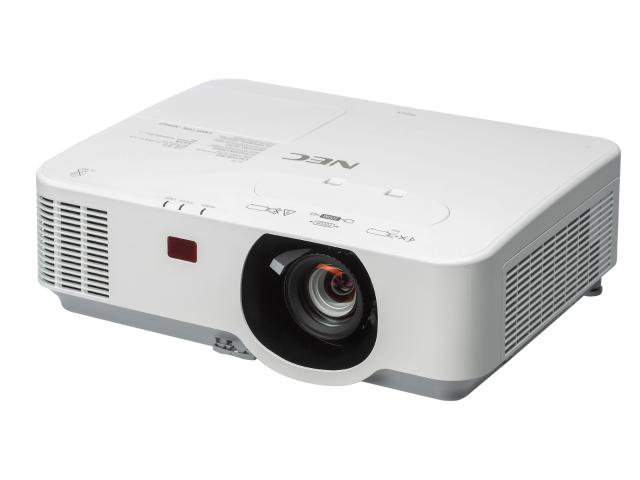

NEC NP-P605UL 6,000 Lumen Laser Projector Description
NEC NP-P605UL 6,000 Lumen Laser Projector combines advanced features at a budget conscious price making it ideal for higher education classrooms and corporate conference rooms. With 6000 lumens, WUXGA resolution and improved color fidelity the P Series delivers impressive images in demanding applications. Installation flexibility is achieved with lens shift, HDBaseT, a broad 1.6x zoom lens and tilt free capability. The 20,000 hour laser life and NEC’s sealed optical engine creates a maintenance free projection solution.
Specifications:
Display
| Aspect Ratio |
16×10 |
Native Resolution |
WUXGA 1920×1200 |
| Maximum Resolution |
Up to 4K@30Hz (3840×2160) with Advanced AccuBlend |
Contrast Ratio (typical) |
600,000:1 with Light Adjust |
Synchronization Range
| Horizontal (Analog/Digital) |
15 to 100KHz (RGB: 24kHz or over) |
Vertical |
50-120 Hz |
Signal Compatibility/Connectivity
| Supported Video Standards |
NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM |
SD/HD Video Signal Compatibility |
4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i |
| PC Signal Compatibility |
VGA, SVGA, XGA, WXGA, Quad-VGA, SXGA, SXGA+, WXGA+, WXGA++, WSXGA+, WUXGA |
Macintosh Signal Compatibility |
Yes |
| External Control |
RS-232 (D-Sub 9pin), IR, RJ45 |
Input Terminals
RGB1(analog):
VGA 15-pin D-sub
RGB2(digital):
HDMI w/ HDCP (v1.4)
RGB3(digital):
HDMI w/ HDCP (v1.4)
RGB4(digital):
HDBaseT
Audio 1:
Stereo Mini Jack
|
Output Terminals
Audio:
Stero Mini Jack
Audioout:
Stereo Mini Jack (variable)
|
|
Power Consumption (typical)
| On |
367W / 261W / 1.4W / 0.13W |
Input Current |
5.5A – 2.3A |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
Physical Specifications
Dimensions (WxHxD)
Product:
18.9 x 16.0 x 5.6 in. (480 x 407 x 142.5 mm)
Shipping:
23.3 x 19.3 x 10.2 in. (591 x 491 x 259 mm)
|
Weight
Net Weight:
21.4 lbs. (9.7 kg)
Shipping:
28.2 lbs. (12.8 kg)
|
Environmental Conditions
| Operating Temperature |
41-104°F / 5-40°C |
Storage |
14° – 122°F / -10° – 50°C |
Limited Warranty (parts & labor)
| Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange. |
|
Additional Features
- 4K Ready
- Manual keystone correction
- Wireless LAN
- USB Viewer
- Auto power on
- ECO Mode technology
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Picture-in-Picture
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
|
|
Optical
| Display Technology |
0.64″ LCD w/ MLA |
Light Output(Lumens) |
6000 lumens |
| Lamp Type |
Laser/Phosphor |
Light Source Life |
20,000 hours |
| Screen Size (diagonal) |
25 – 300 in. / 0.6 – 7.6m |
Throw Ratio |
1.23-2.0:1 |
| Projection Distance |
2.6 – 44.3 ft. / 0.8 – 13.5m |
Projector Angle |
0 – 10.8° tele / 0 – 17.0° wide |
Lens
Zoom:
1.6x
Focus:
Manual
F number, fnumber:
F=1.5~2.1 / f=17.2~27.6mm
|
Keystone Correction |
+/- 30° horizontal, +/- 30° vertical |
Mechanical
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
Fan Noise |
28dB (HIGH BRIGHT) / 25dB (OTHERS) / 19dB (ECO) |
| Regulations |
UL60950-1:2nd edition,2014, UL62368-1:2nd Edition, FDA, Proposition65, TPCH, CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) |
|
