Description

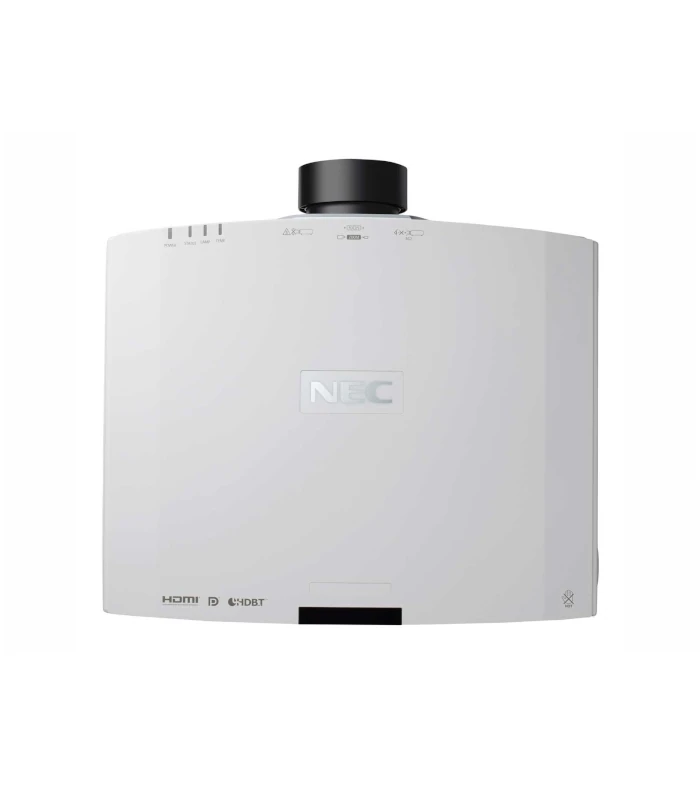

NEC NP-PA853W + NP13ZL Lens Professional Installation Projector Description
NEC NP-PA853W + NP13ZL Lens Professional Installation Projector model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
Display
| Native Resolution | WXGA 1280 x 800 | Maximum Resolution | 4K 4096 x 2160 |
| Contrast Ratio (typical) | 10,000:1 with auto iris | |
Synchronization Range
| Horizontal (Analog/Digital) | Analog: 15-100kHz, Digital: 15-153kHz | Vertical | Analog: 48-120Hz, Digital: 24-120Hz |
Signal Compatibility/Connectivity
| Supported Video Standards | NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM | SD/HD Video Signal Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K |
| PC Signal Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA | Macintosh Signal Compatibility | Yes |
| Sync Compatibility | Separate Sync / Composite Sync / Sync on G | External Control | RS-232, IR, HDBaseT, DDC/CI, USB |
Input TerminalsRGB1(analog): VGA 15-pin D-sub RGB2(digital): HDMI w/HDCP (V2.2) RGB3(digital): HDMI w/HDCP (V2.2) RGB4(digital): DisplayPort w/HDCP (V1.4) RGB5(digital): HDBaseT w/HDCP (V2.2) Audio 1: Stereo Mini Jack | Output TerminalsAudioout: Stereo Mini Jack Monitor Out: HDBaseT |
Power Consumption (typical)
| On | 566W / 390W / 0.7W / 0.3W | Input Current | 6.2-3.1A |
| Power Requirements | 100-240V AC, 50/60 Hz | |
Physical Specifications
Dimensions (WxHxD)Product: 19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm | WeightNet Weight: 22.5 lbs. / 10.2 kg |
Environmental Conditions
| Operating Temperature | 41-104°F / 5-40°C | Storage | -14-122°F / -10-50°C |
Limited Warranty (parts & labor)
| Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp. | |
Optical
| Display Technology | 0.76″ LCD w/ MLA | Light Output(Lumens) | 8500normal |
| Lamp Type | 420W AC | Lamp Life (up to) | 3000 hours normal / 5000 hours eco |
| Screen Size (diagonal) | 40 to 500 in. / 1.02 to 12.7m | Projection Distance | 2.5 to 68.5 ft. / 0.74 to 20.9m |
| Projector Angle | 10.3 to 10.8° tele / 13.7 to 14.5° wide | LensZoom: Variable Focus: Power F number, fnumber: Variable |
| Keystone Correction | +/- 40° horizontal, +/- 30° vertical | |
Mechanical
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear | Fan Noise | 39 dB normal / 33 dB eco |
| Regulations | USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) | Optional Lenses | NP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL |
NEC NP-PA853W + NP13ZL Lens Professional Installation Projector Catalog
