NEC P525ULG 5000 Lumens WUXGA Projector
NEC P525ULG WUXGA Projector
5000 Lumen LASER WUXGA Projector
WUXGA Projector
Download Catalog PDF Click here>
Description
NEC P525ULG 5000 Lumens Wuxga Projector
Visible yet noiseless – Bringing a sense of calm to your meeting spaces
Scalable visualisation has never been so silent. With an outstandingly low noise level of just 22dB*, the P525UL is quieter than the ticking of a watch.
Thanks to the completely sealed engine, this laser projector is filter-free meaning 20,000 hours of maintenance-free operation. Comprehensive connectivity and optional WiFi provide the utmost flexibility and time saving operation. The enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box to your meeting room. The technology is future-proof with the capability of processing 4K inputs at 30Hz. Bringing the future of projection to your meeting room has never been easier, quieter and as low maintenance than with the NEC P525UL.
*in Eco mode / normal mode: 24 dB / High Bright mode: 27 dB
Benefits
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Low Noise Level – with 22dB*, the silent technology will not disturb your meeting.
- Future-proof input management – thanks to 4K@30 Hz input processing.
- Minimised Carbon Footprint – with only 320W power consumption in normal mode for lowering your TCO.
- Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
- Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector,
making installation easy and potentially saving set up costs
product Name P525UL
- Product Group Laser Projector
Order Code 60004708
Projection Technology 3LCD Technology
Native Resolution 1920 x 1200
(WUXGA)
Aspect Ratio 16:10
Contrast Ratio 1 520000:1
Brightness 1 5000 Normal / 3000 Eco ANSI Lumen; 5200 Centre Lumen
Lamp Laser Light Source
Lamp Life [hrs] 20000
Lens F= 1.5–2.1, f= 17.2–27.6 mm
Lens shift H:±29, V:+60,-0
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor 1.23 – 2 : 1
Projection Distance [m] 0.8 – 13.5
Screen Size (diagonal) [cm] /
[inch]
Maximum: 762 / 300″; Minimum: 76.2 / 30″
Zoom Manual; x1.6
Focus Adjustment Manual
Supported Resolutions 3840×2160 @ 30hz
digital;
3840 x 2160
(Maximum resolution
of digital input);
1920×1200
(Maximum resolution
of analog input)

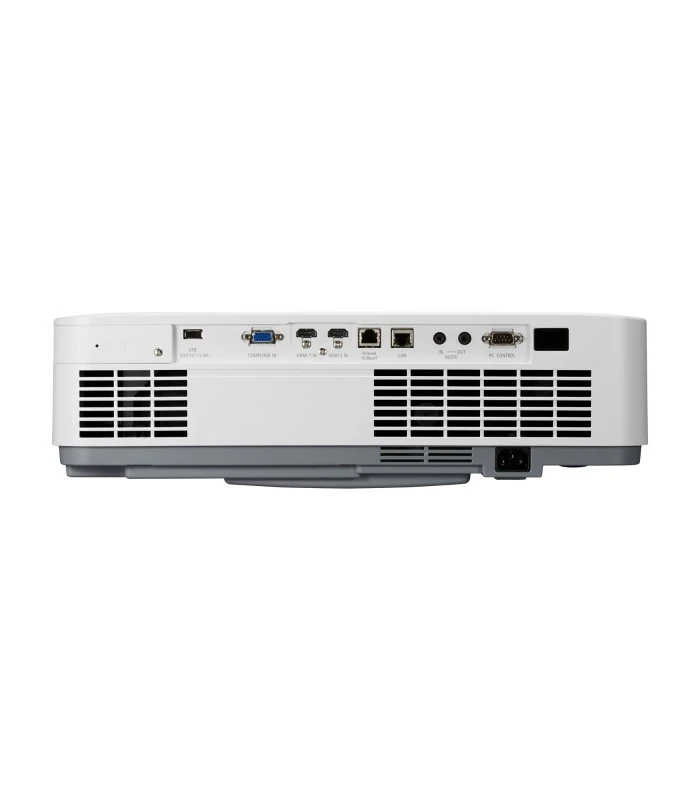

Connectivity
RGB (analog) Input: 1 x Mini D-sub 15 pin
Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45; Optional WLAN
USB 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply
Video Signals NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID
set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute;
Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select
Electrical
Power Supply 100-240 V AC; 50 – 60 Hz
Power Consumption [W] 330 (Normal) / 240 (Eco) / 1.4 (Network Stand-by) / 0.3 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm] 480 x 122 x 407 (without lens and feet)
Weight [kg] 9.7 - Fan Noise [dB (A)] 22 / 24 / 27 (ECO / Normal / High Bright)
Colour Versions White
Laser Projector – P525UL (2 / 4)
Environmental Conditions
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80
Ergonomics
Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved; TüV GS
Speakers [W] 1 x 20 (mono)
Additional Features
Special Characteristics Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function;
DICOM Simulation; Direct Power-Off Function; Help Function; HTTP Browser Control;
Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with
USB Display; MultiPresenter Function; NaViSet Administrator 2; Optional User Logo; OSD with
30 languages; Password Security System; Plug&Play W-LAN Option; Quick Start; Source
Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer; Virtual
Remote for direct PC control
Green Features
Ecological Materials Downloadable manuals; ECO packaging
Ecological Standards ErP compliant; RoHs compliant
Light Source 3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents 2x AAA Batteries; IR Remote Control (477E); Mini D-SUB Signal Cable (1.8 m); Power Cord
(1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software
Optional Accessories
Optional Accessories Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); Wireless LAN module (NP05LM2; NP05LM4;
NP05LM5)
1 Compliance with ISO21118-2012
TUEV Type
Approved CE ErP RoHS TüV GS
This product has been equipped with a laser module and is classified as Class1 of IEC60825-1 Ed3 2014 and is classified as RG2
of IEC62471-5 Ed1 2015.
DO NOT LOOK DIRECTLY INTO THE BEAM.
This document is © 2019 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registeredAdditional Features
Special Characteristics Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function;
DICOM Simulation; Direct Power-Off Function; Help Function; HTTP Browser Control;
Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with
USB Display; MultiPresenter Function; NaViSet Administrator 2; Optional User Logo; OSD with
30 languages; Password Security System; Plug&Play W-LAN Option; Quick Start; Source
Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer; Virtual
Remote for direct PC control
Green Features
Ecological Materials Downloadable manuals; ECO packaging
Ecological Standards ErP compliant; RoHs compliant
Warranty
Projectors 3 years pan-European service
Light Source 3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents 2x AAA Batteries; IR Remote Control (477E); Mini D-SUB Signal Cable (1.8 m); Power Cord
(1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software
Optional Accessories
Optional Accessories Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); Wireless LAN module (NP05LM2; NP05LM4;
NP05LM5)
1 Compliance with ISO21118-2012
TUEV Type
Approved CE ErP RoHS TüV GS
This product has been equipped with a laser module and is classified as Class1 of IEC60825-1 Ed3 2014 and is classified as RG2
