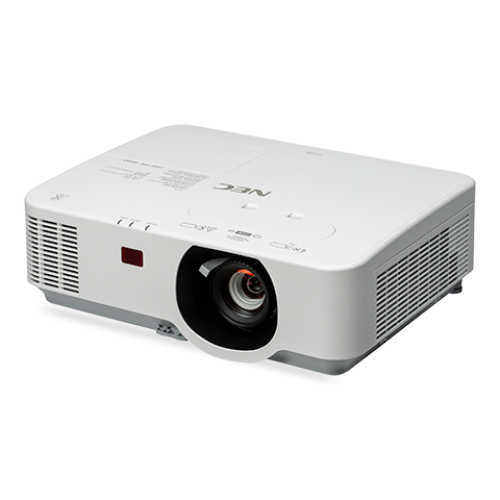

NEC P554U 5500 Lumens WUXGA Entry Level Projector

Nec P554U Entry level Professional installation Projector features:

  • Horizontal & Vertical lens shift enables flexible projector placement
  • Powerful 20W speakers provide volume needed for large rooms
  • Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
  • Dual HDMI inputs (with HDCP) ensures quick switching between presentations
  • LAN connection for control and asset management over the network
  • Optional wireless display with MultiPresenter Stick
  • Variable audio-out allows the remote control to adjust speaker volume
  • 20,000:1 Contrast Ratio creating extremely detailed images

Download Catalog PDF Click Here>

Description

Aspect Ratio 16×10 Native Resolution WUXGA 1920×1200
Maximum Resolution WUXGA 1920 x 1200 Contrast Ratio (typical) 20,000:1

Synchronization Range

Horizontal (Analog/Digital) 15-100 kHz (RGB: 24 kHz or over) Vertical 50-120 Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, DDC/CI, USB, LAN

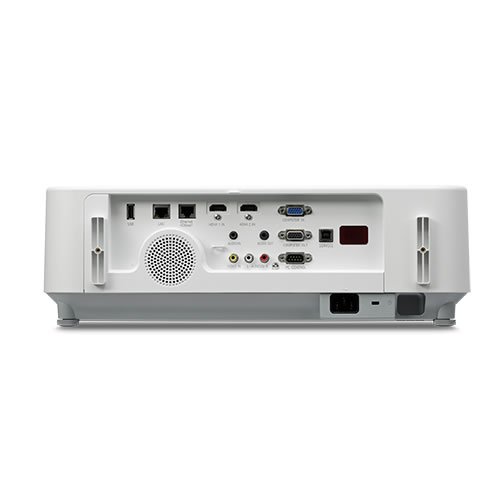

Input Terminals

RGB1(analog):
VGA 15-pin D-sub
RGB2(digital):
HDMI w/HDCP
RGB3(digital):
HDMI w/HDCP
RGB4(digital):
HDBaseT
Video 1:
RCA
Audio 1:
RCA
Audio 2:
Mini stereo
Output Terminals

Audioout:
1/8 in. stereo (Variable audio out)
Monitor Out:
VGA 15-pin D-sub

Power Consumption (typical)

On 457W / 286W / 2.0W / 0.14W Input Current 5.0-2.0A
Power Requirements 100-240V AC, 50/60 Hz

Environmental Conditions

Operating Temperature 41-104°F / 5-40°C Storage 14-122°F / -10-50°C

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp.

Additional Features

  • Manual keystone correction
  • Wireless LAN (control only)
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

Optical

Display Technology 0.64″ LCD Light Output(Lumens) 5600 (Center)
5300 (Eco Off)
4250 (Normal Eco)
3200 (Eco)
Lamp Type 330W AC Lamp Life (up to) 4000 hours (Eco Off) / 6000 hours (Normal Eco) / 8000 hours (Eco)
Screen Size (diagonal) 30 to 300 in. / 0.76 to 7.6m Throw Ratio 1.2 to 2.0
Projection Distance 2.6 to 42.3 ft. / 0.8 to 12.9m Projector Angle 0 to 10.0° tele / 0 to 16.0° wide
Lens

Zoom:
1 to 1.6
Focus:
Manual
F number, fnumber:
F=1.5 to 2.08, f=17.2 to 27.7mm
Keystone Correction Manual +/- 20° horizontal, +/- 30° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 37 dB normal / 34 dB eco
Regulations USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM

Light Output

5600(Center)
5300 (Eco Off)
4250 (Normal Eco)
3200 (Eco)

Fan Noise

37 dB normal / 34 dB eco

Regulations

USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM

Nec P554U 5500lumens Entry level Professional installation Projector Catalog
