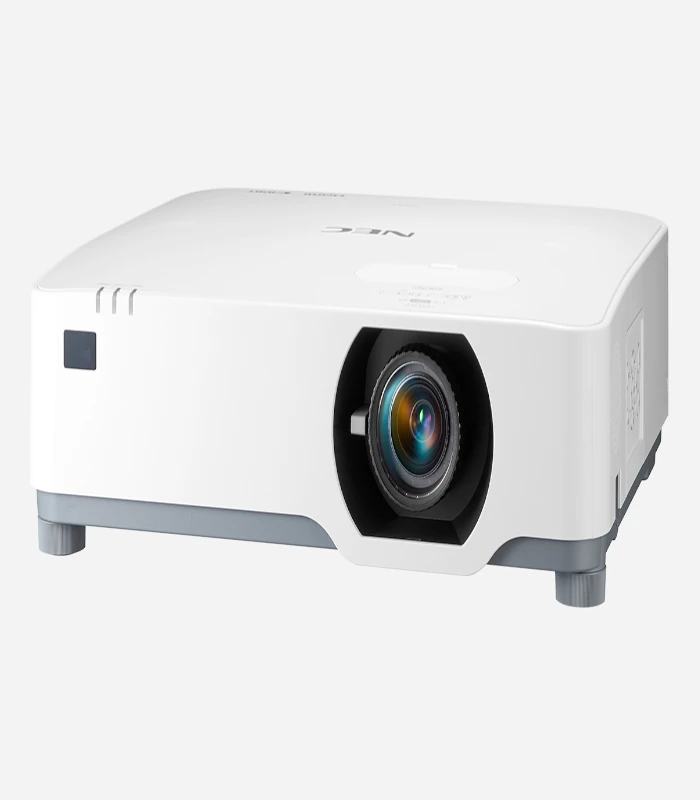

NEC P605ULG 6000 Lumen WUXGA PROJECTOR

Description

NEC P605ULG 6000 Lumen WUXGA PROJECTOR Super silent yet brilliantly versatile
Innovation grounded in the true needs of the user results in the P605ULG, a laser projector that is so silent it goes
unnoticed yet for the 6,000 ANSI lumen image projection, perfectly visible in brightly lit spaces. A new standard in
silent operation, 19dB in Eco mode is quieter than the ticking of a watch and is unsurpassed by any other installation
projector. With 4K@30Hz input processing, comprehensive connectivity and supporting WUXGA resolution, the futureproofed projector delivers an eye-pleasing visual experience.
Install and forget – requiring zero maintenance over its long 20,000 hour life, the completely sealed optical engine and
laser light source means filter and lamp replacement is obsolete; paired with a minimal power consumption of just
357W in normal mode, the P605ULG ensures low operational costs.
With optional WiFi and embedded MultiPresenter function for wireless presentation and screen sharing, this is the ideal
meeting room and classroom tool, but also meets the needs of rental and staging companies and digital signage use
cases.
Benefits
No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour
brightness is maintained and servicing costs need no longer feature in your budget.
Low Noise Level – with 19dB*, the silent technology will not disturb your meeting.
Future-proof input management – thanks to 4K@30 Hz input processing.
Minimised Carbon Footprint – with only 357W power consumption in normal mode for lowering your TCO.
No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety
precautions are necessary.
Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector,
making installation easy and potentially saving set up costs.
Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector,
making installation easy and potentially saving set up costs.
Product Name P605UL
Product Group Laser Projector
Order Code 60004811
Projection Technology 3LCD Technology
Native Resolution 1920 x 1200
(WUXGA)
Aspect Ratio 16:10
Contrast Ratio 1 500000:1
Brightness 1 6000 ANSI Lumen (approx. 60% in Eco Mode)
Lamp Laser Light Source
Lamp Life [hrs] 20000
Lens F= 1.5–2.1, f= 17.2–27.6 mm
Lens shift H:±29, V:+60,-0
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor 1.23 – 2 : 1
Projection Distance [m] 0.8 – 13.5
Screen Size (diagonal) [cm] /
[inch]
Maximum: 762 / 300″; Minimum: 76.2 / 30″
Zoom Manual; x1.6
Focus Adjustment Manual
Supported Resolutions 3840×2160 @ 30hz
digital;
3840 x 2160
(Maximum resolution
of digital input);
1920×1200
(Maximum resolution
of analog input)

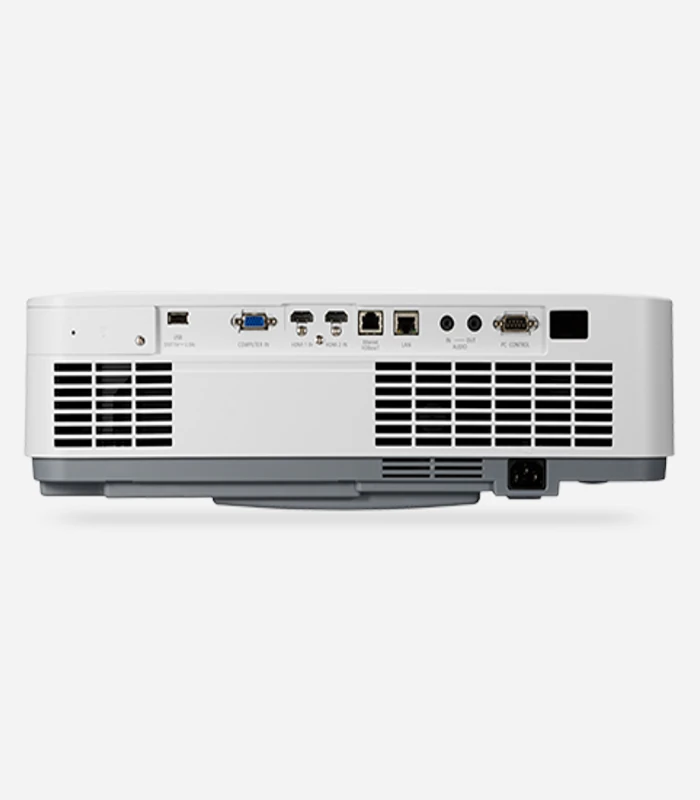

Connectivity
RGB (analog) Input: 1 x Mini D-sub 15 pin
Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45; Optional WLAN
USB 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply
Video Signals NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID
set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute;
Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select
Electrical
Power Supply 100-240 V AC; 50 – 60 Hz
Power Consumption [W] 357 (Normal) / 257 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm] 480 x 122 x 407 (without lens and feet)
Weight [kg] 9.7
