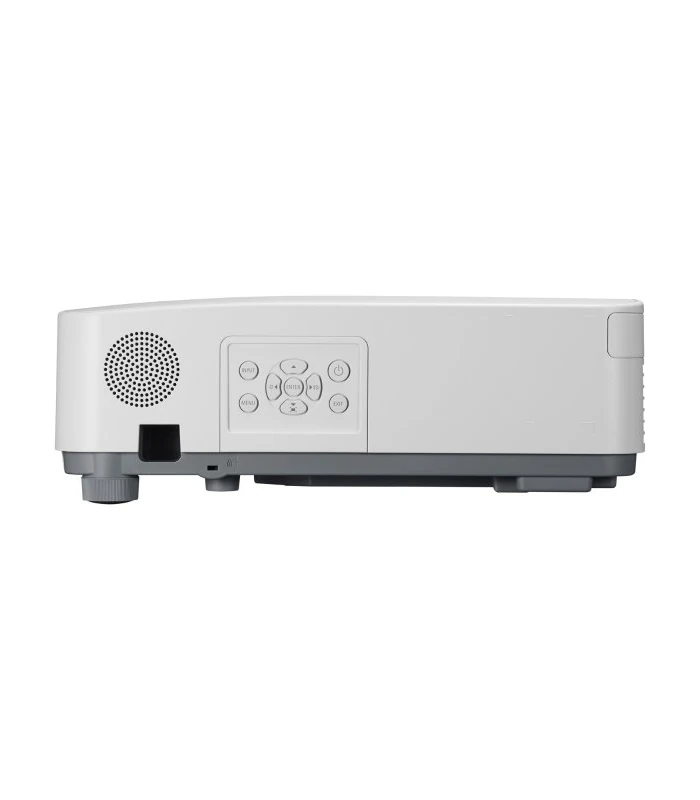

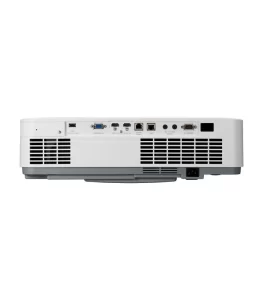

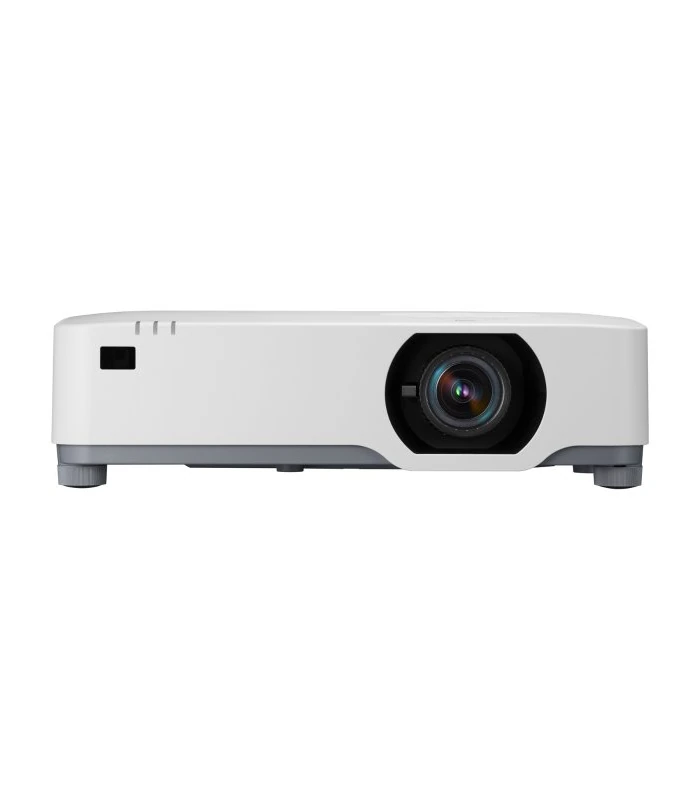

NEC P627UL 6200 lumens Laser Projector
NEC P627UL 6200 lumens Laser Projector
| Type | LCD |
| Brightness [AL] | 6200 |
| Resolution | 1920 x 1200 |
| Light Source | Laser |
| Light Source Life [h] | 20000 |
| Weight [kg] | 9.7 |
Description
NEC P627UL 6200 lumens Laser Projector
Super silent yet brilliantly versatile
Innovation grounded in the true needs of the user results in the P627UL, a laser projector that is so silent it goes unnoticed yet for the 6,200 ANSI lumen image projection, perfectly visible in brightly lit spaces. A new standard in silent operation, 22dB in Eco mode is quieter than the ticking of a watch and is unsurpassed by any other installation projector. With 4K@30Hz input processing, comprehensive connectivity and supporting WUXGA resolution, the future-proofed projector delivers an eye-pleasing visual experience.
Install and forget – requiring zero maintenance over its long 20,000 hour life, the completely sealed optical engine and laser light source means filter and lamp replacement is obsolete; paired with a minimal power consumption of just 318W in normal mode, the P627UL ensures low operational costs.
With optional WiFi and embedded MultiPresenter function for wireless presentation and screen sharing, this is the ideal meeting room and classroom tool, but also meets the needs of rental and staging companies and digital signage use cases.
Benefits
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Low Noise Level – with 22dB, the silent technology will not disturb your meeting.
- Future-proof input management – thanks to 4K@30 Hz input processing.
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
| Projection Technology | 3LCD Technology |
| Native Resolution |
1920 x 1200 (WUXGA)
|
| Aspect Ratio | 16:10 |
| Contrast Ratio 1 | 600000:1 |
| Brightness 1 | 6200 ANSI Lumen (approx. 60% in Eco Mode) |
| Lamp | Laser Light Source |
| Light Source Life [hrs] | 20000 2 |
| Lens | F= 1.5–2.1, f= 17.2–27.7 mm |
| Lens shift | H:±29, V:+60,-0 |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.23 – 2 : 1 |
| Projection Distance [m] | 0.8 – 12.9 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300″; Minimum: 76.2 / 30″ |
| Zoom | Manual; x1.6 |
| Focus Adjustment | Manual |
| Supported Resolutions |
1920×1200 (Maximum resolution of analog input);3840 x 2160 (Maximum resolution of digital input);3840×2160 @ 30hz digital
|
CONNECTIVITY
| RGB (analog) | Input: 1 x Mini D-sub 15 pin |
| Digital | Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP |
| Audio | Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control | Input: 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45; Optional WLAN |
| USB | 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle) |
| Video Signals | NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM |
REMOTE CONTROL
| Remote Control | Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select |
ELECTRICAL
| Power Supply | 100-240 V AC; 50 – 60 Hz |
| Power Consumption [W] | 318 (Normal) / 237 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by) |
MECHANICAL
| Dimensions (W x H x D) [mm] | 480 x 122 x 407 (without lens and feet) |
| Weight [kg] | 9.7 |
| Fan Noise [dB (A)] | 22 / 27 (Eco / Normal) |
| Colour Versions | White |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | 5 to 40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
ERGONOMICS
| Safety and Ergonomics | CE; EAC; ErP; RoHS; TUEV Type Approved; TüV GS |
| Speakers [W] | 1 x 20 (mono) |
ADDITIONAL FEATURES
| Special Characteristics | Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Plug&Play W-LAN Option; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer; Virtual Remote for direct PC control |
GREEN FEATURES
| Ecological Materials | Downloadable manuals; ECO packaging |
| Ecological Standards | ErP compliant; RoHs compliant |
WARRANTY
| Projectors | 3 years pan-European service |
| Light Source | 3 years or 10000h (whatever comes first) |
SHIPPING CONTENT
| Shipping Contents | 2x AAA Batteries; IR Remote Control (477E); Lens Cap; Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software |
