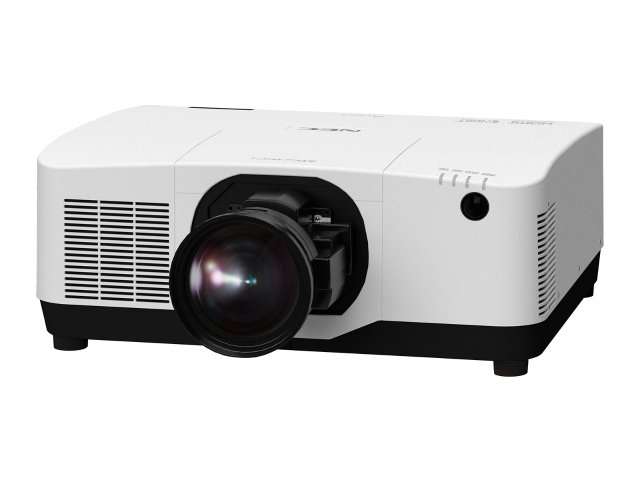

NEC PA1505UL Professional Advanced LCD Laser Installation Projector
| Type | LCD |
| Brightness [Lm] | 14000 |
| Resolution | 1920 x 1200 |
| Weight [kg] | 28.7 |
| Order Code | 60005971 (W), 60005928 (B) |
Download Catalog PDF Click here>
Description
A new class of bright projection
Now even larger spaces can benefit from Sharp/NEC’s innovation in silent technology with the 15,000 center lumens PA1505UL Laser Installation Projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels. The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress – no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time. Sharp/NEC customers can easily make the transition to benefit from the latest laser technology. The PA1505UL Laser Installation Projector is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
- 15,000 Lumens Brightness – Vibrant visuals in bright environments.
- Laser Light Source – Up to 20,000 hours of maintenance-free operation.
- WUXGA Resolution – Sharp, high-definition image quality.
- Flexible Installation – 360-degree installation and motorized lens shift.
- Edge Blending & Warping – Seamless multi-projector setups.
Benefits
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
- Compact design – a large venue projector with a comparatively small footprint and light weight design.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
Product Information
NEC PA1505UL
Product Group
Professional Advanced LCD Laser Installation Projector
Order Code
60005971 (W), 60005928 (B)
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
3000000:1
Brightness
14000 Lm / 15000 Lm Center; compliant with ISO21118-2012
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1
Lens
6 motorized lens options
Lense Adjustment
Motorized
Lens shift
Up to H:±25, V:+65,-65
Keystone correction
+/- 40° manual horizontal / +/- 30° manual vertical
Projection Factor
depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
Projection Distance [m]
0.68 – 80.77
Screen Size (diagonal) [cm] / [inch]
Maximum: 1,270 / 500″; Minimum: 152 / 60″
Zoom
Motorized
Focus Adjustment
Motorized
Supported Resolutions
1080i/50/60;1080p/24/25/30/50/60;1920×1200 (WUXGA) – 640×480 (VGA);2048 x 1080 (2k);2560 x 1600 (WQXGA);4096 x 2160 (4k);720p/50;720p/60
Frequency
Horizontal: analog: 0-0 kHz, digital: 15/24-153 kHz; Vertical: 24 – 120 Hz

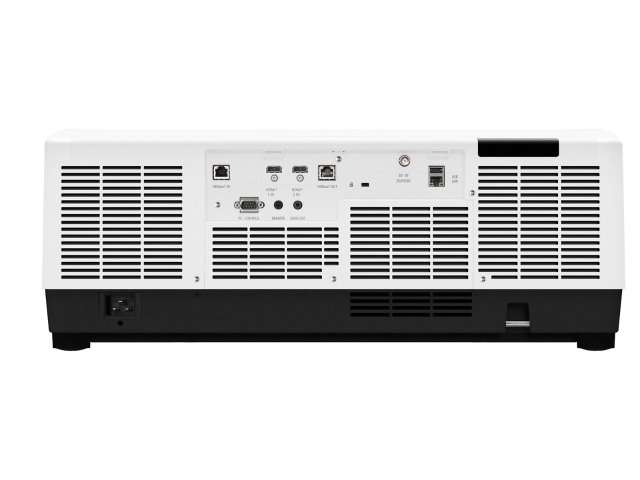

Connectivity
Digital
Input: 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2
Audio
Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN
1 x RJ45
USB
1 x Type A (USB 2.0 high speed)
Remote Control
Remote Control
Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply
100-240 V AC; 50 – 60 Hz
Power Consumption [W]
925 Normal / 825 Silent Mode / 0,5 Network Stand-by / 2,0 Stand-by
Mechanical
Dimensions (W x H x D) [mm]
599 x 238 x 490 (without lens and feet)
Weight [kg]
28.7
Fan Noise [dB (A)]
38 / 35 (Normal / Silent)
Colour Versions
Black; White
Environmental Conditions
Operating Temperature [°C]
0 to 40
Operating Humidity [%]
20 to 80 non-condensing
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80 non-condensing
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS; TUEV Type Approved
Additional Features
Special Characteristics
4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; IP5X/IP6X rated; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max, horizontal ± +0.25 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI – Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control
Green Features
Energy Efficiency
ECO scheduler; Intelligent power management; Less than 0.5W stand-by power; Longer light source life; Software scheduling; Timer function
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
Optional Accessories
Optional Accessories
6 optional bayonet lenses; Universal Ceiling Mounts (PJ02UCMPF)
Lenses – motorized
NP51ZL (0.53-0.65:1); NP52ZL (0.65-0.86:1); NP53ZL (0.86-1.25:1); NP54ZL (1.24-2.01:1); NP55ZL (1.98-3.95:1); NP56ZL (3.92-7.5:1)
