Description

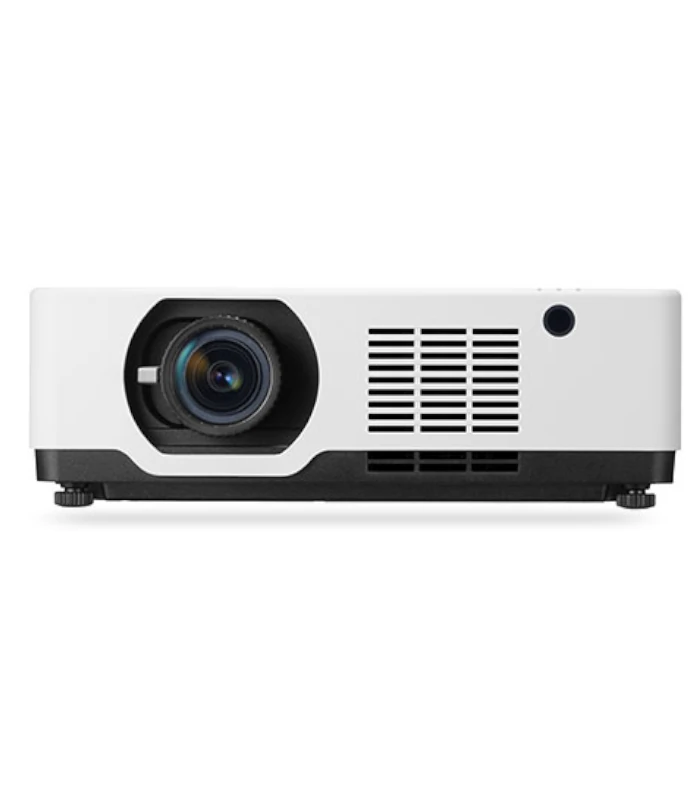

NEC PE506UL 5200 Lumen WUXGA Laser Projector
The NEC PE506UL Entry Installation Series, LCD, laser projector combines a unique set of features at a budget conscious price making it ideal for K12 and higher education classrooms as well as corporate conference rooms for small to medium sized business. With 5200 lumens, WUXGA resolution and outstanding LCD color fidelity the PE Series delivers impressive images in demanding applications. Installation flexibility is achieved with a compact design and broad horizontal and vertical manual lens shift with a 1.6x zoom lens. The 20,000 hour laser life creates a low TCO projection solution.
- LCD technology delivers an impressive and accurate image
- Horizontal & Vertical lens shift enables flexible projector placement
- Powerful 16W speakers provide volume needed for most large classrooms and conference rooms
- 4K Ready – Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
- Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in K12, higher education and corporate
Display
| Aspect Ratio |
16×10 |
Native Resolution |
WUXGA 1920×1200 |
| Maximum Resolution |
Up to 4K@30 (HDMI), WUXGA (1920×1200) Analog |
Contrast Ratio (typical) |
3,000,000:1 (with Dynamic Contrast) |
Synchronization Range
| Horizontal (Analog/Digital) |
15-100kHz (RGB: 24kHz or over) |
Vertical |
24-85Hz |
Signal Compatibility/Connectivity
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD |
PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
| Macintosh Signal Compatibility |
Yes |
External Control |
RS-232 (D-Sub 9pin), IR, LAN |
Input Terminals
RGB1(analog):
VGA 15-pin D-sub
RGB1(digital):
HDMI w/ HDCP (v1.4b)
RGB2(digital):
HDMI w/ HDCP (v1.4b)
Audio 1:
Stereo Mini Jack
|
Output Terminals
Audio:
Stero Mini Jack
Audio Out:
Stereo Mini Jack
Monitor Out:
VGA 15pin D-sub
|
Power Consumption (typical)
| On |
352W / 228W / 201W / 2W / 0.5W |
Input Current |
4.5-1.6A |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
Physical Specifications
Dimensions (WxHxD)
Product:
15.9 x 5.4 x 14.7 in. (405 x 137 x 373 mm)
Shipping:
20.1 x 10.2 x 19.7 in. (510 x 260 x 500 mm)
|
Weight
Net Weight:
17.5 lbs. (7.95 kg)
Shipping:
21.9 lbs. (9.95 kg)
|
Environmental Conditions
| Operating Temperature |
32-104°F / 0-40°C |
Operating Humidity |
20 to 88% Humidity (Non-Condensing) |
| Storage Temperature |
14-122°F / -10-50°C |
Storage Humidity |
20 to 80% Humidity (Non-Condensing) |
Limited Warranty (parts & labor)
| Registered owners receive a 5-year parts and labor warranty including InstaCare next business day exchange. |
|
Additional Features
- Direct power on
- Auto power off
- ECO Mode technology
- NaviSet Administrator2 compatible
- Crestron, AMX, PJLink support
|
|
Optical
| Display Technology |
0.64″ LCD |
Light Output(Lumens) |
5,200 normal |
| Light Source Life |
20,000 hours normal / 30,000 hours eco |
Screen Size (diagonal) |
30 – 300 in. / 0.76 – 7.62m |
| Throw Ratio |
1.22 – 1.98:1 |
Projection Distance |
2.6 to 44.3 ft. / 0.8 to 13.5m |
| Projector Angle |
0 – 10.8° tele / 0 – 17° wide (at 60″) |
Lens
Zoom:
1.6x
Focus:
Manual
F number, fnumber:
F:1.5~2.08 /f=17.2~27.7mm
|
| Keystone Correction |
+/- 30° horizontal (manual), +/- 30° vertical (manual + auto) |
|
Mechanical
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
Fan Noise |
37dB (ECO mode Off), 27dB (ECO mode) |
| Regulations |
USA: UL (UL60950-1/UL62368-1) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7 |
|
Accessories
| Included |
- Remote Control, (2) AAA Batteries
- Power Cord
- RGB Signal Cable
|
Optional |
- Replacement Remote Control (RMT-PJ39)
- Custom Ceiling Mount (MP300CM)
|
Lens Adjustment Functions
| Manual focus, zoom, shift |
|
Supported Screen Size (maximum)
| 30 – 300 in. / 0.76 – 7.62m |
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-In Speakers
Enhance the visual experience with superior sound
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
16W Audio
provides the volume needed for large rooms
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
ECO Mode™
Extends light source life, lowers audible noise and reduces total cost of ownership.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector’s remote control.
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
