Description

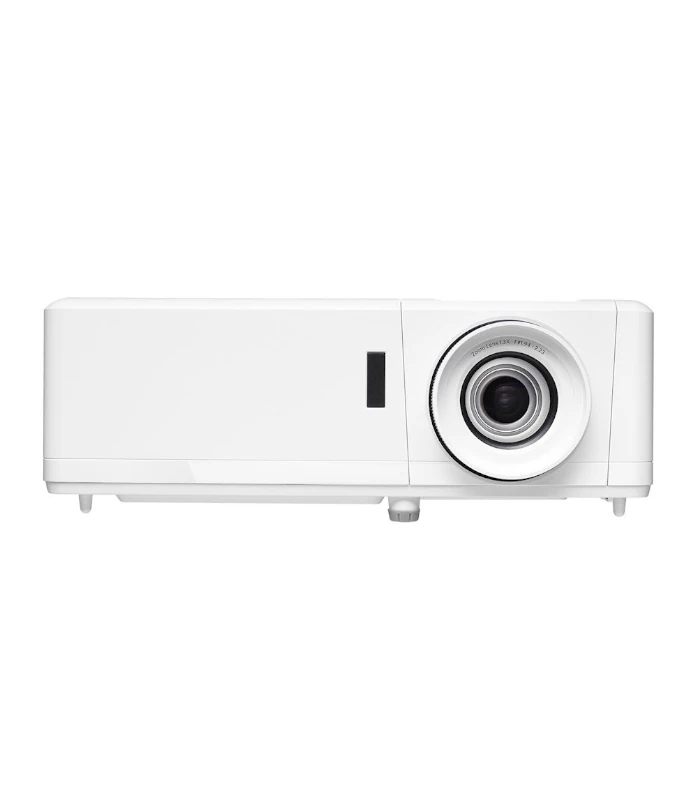

Optoma ZH403 4000Lumens 1080p Laser Projector.
Compact, lightweight and virtually maintenance free
Brighten any room with razor-sharp, 4,000 lumen, 1080p projection with the remarkable Optoma ZH403. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.
|
| 360 Operation |
Yes |
| Aspect Ratio |
16:9 (native), 4:3, LBX, auto compatible |
| Brightness |
4,000 ANSI lumens |

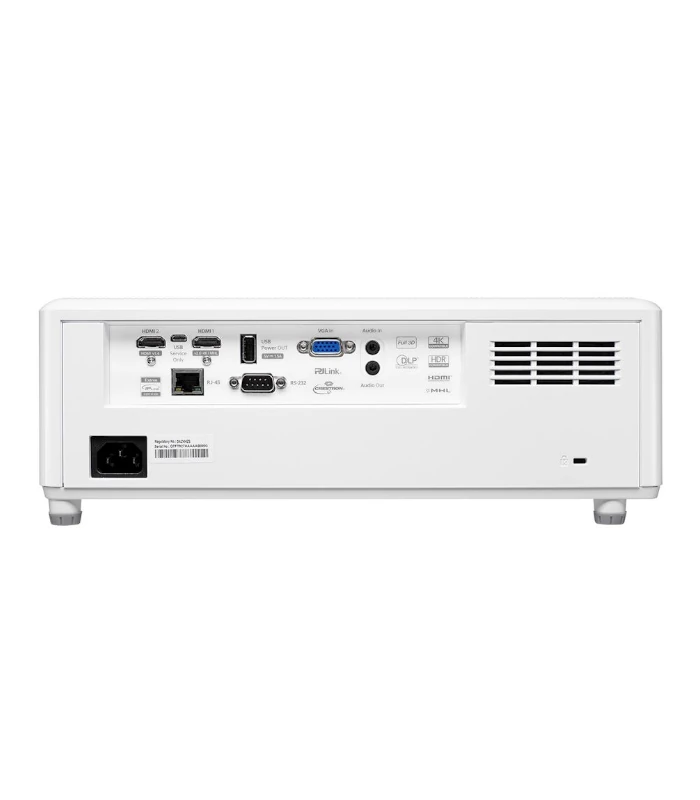

| Connections |
1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x audio in (3.5mm), 1x USB-A (power, 5V, 1.5A), 1x micro USB (service) |
| Contrast Ratio |
300,000:1 (Extreme Black enabled) 1,800:1 full on/full off |
| Display Technology |
Texas Instruments™ 0.65” 1080p DMD |
| Displayable Colors |
1.07 billion |
| Keystone Correction |
±30° Vertical |
| Light Source Type |
DuraCore laser |
| Light Source Life |
Up to 30,000 hours (Eco), 20,000 hours (Normal) |
| Maximum Resolution |
HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200) |
| Native Resolution |
1080p (1920 x 1080) |
| Noise Level |
32dB |
| Offset |
115% |
| Operating Temperature |
41–104°F (5–40°C), 85% max humidity |
| Power Consumption |
Bright: 246W typical, 283W max Eco: 193W typical, 220W max |
| Power Supply |
AC input 100–240V, 50–60Hz, auto-switching |
| Projection Distance |
2.4’- 34.7’ (without zoom) |
| Projection Lens |
f=12.81-16.74mm, F=1.94-2.23 |
| Projection Method |
Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable, 360˚: auto dims to 60%±5% in 195˚ – 345˚ orientation, Portrait: auto dims to 90%±5% |
| Projection Screen Size |
28” – 300.3” |
| Remote Control |
Full size remote with laser pointer |
| Throw Ratio |
1.21-1.59:1 ±5% |
| Uniformity |
75% |
| Zoom Type |
1.3x optical, 0.8 – 2.0x digital |
|
| COMPATIBILITY SPECIFICATIONS |
| 3D Compatibility |
Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately. |
| Computer Compatibility |
VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD |
| Horizontal Scan Rate |
15.375 – 91.146 KHz |
| Vertical Scan Rate |
(120 Hz for 1080p 3D feature), 24 – 85 Hz |
| Video Compatiblity |
PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K |
|
| PHYSICAL SPECIFICATIONS |
| Dimensions (W x H x D) |
13.26” x 4.8” x 10.5” |
| Security |
Kensington® lock port, password (OSD) |
| Weight |
9.4 lbs |
|
| OTHER |
| What’s in the Box? |
ZH403, AC power cable, remote control, batteries, quick start user manual |
| Accessories Part Numbers |
4K UHD Casting and Mirror Dongle: UHDCast Pro, QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle), QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX), Remote (replacement): BR-3075W, Universal ceiling mount: BM-5001U, Universal Ceiling mount: OCM815W, Universal Ceiling mount: OCM818W-RU |
| UPC |
796435 44 463 1 |
| Warranty Info |
2 Year parts and labor limited warranty on the projector, 5-year or 12,000 hour light source warranty (whichever comes first) |
|
