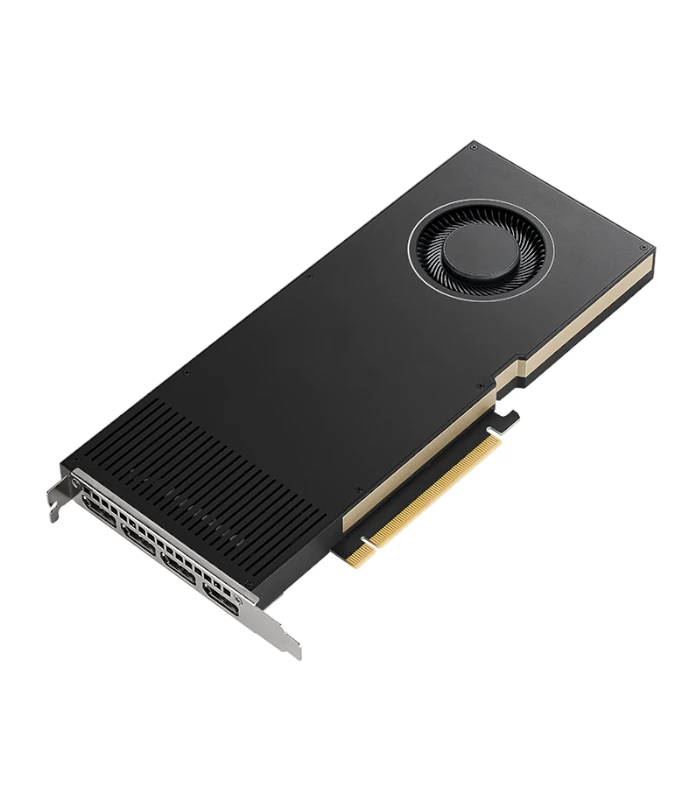

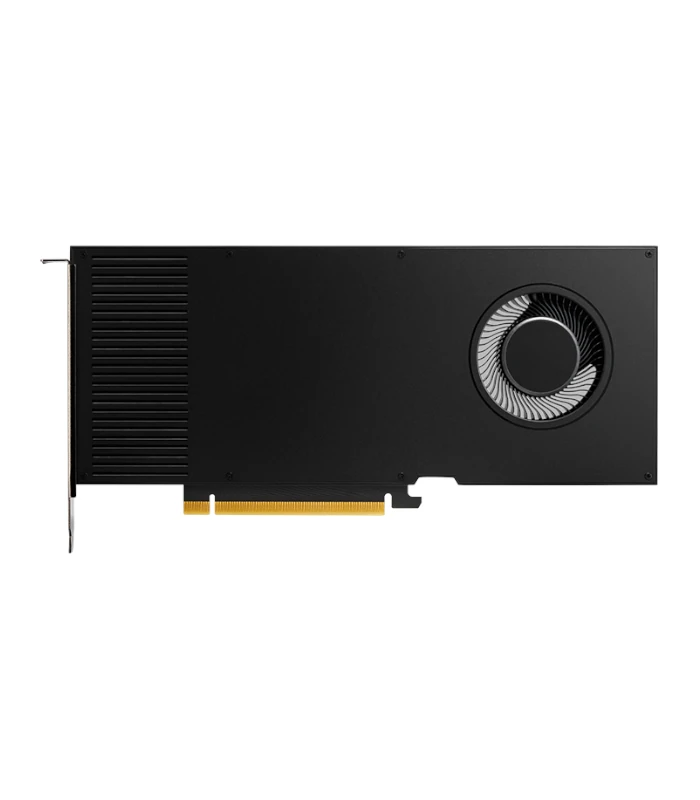

PNY NVIDIA RTX A4000 Graphic Card
PNY NVIDIA RTX A4000 Graphic Card
CUDA Cores | 6144 |
Tensor Cores | 192 |
RT Cores | 48 |
Single Precision Performance | 19.2 TFLOPS |
RT Core Performance | 37.4 TFLOPS |
Tensor Performance | 153.4 TFLOPS |
GPU Memory | 16 GB GDDR6 with ECC |
Memory Interface | 256-bit |
Memory Bandwidth | 448 GB/sec |
System Interface | PCI Express 4.0 x16 |
Display Connectors | 4x DisplayPort 1.4a |
Maximum Power Consumption | 140 W |
Download Catalog PDF Click here>
Description
PNY NVIDIA RTX A4000 Graphic Card
NVIDIA RTX A4000
Sleek Design. Powerful Performance.
The NVIDIA Ampere architecture builds on the power of NVIDIA RTX to deliver the next generation of accelerated visual computing. As millions of professionals continue to work from anywhere, they rely on a wide range of devices to deliver the power and performance they need to work effectively.
The NVIDIA RTX A4000 is the most powerful single-slot GPU for professionals, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics performance to your desktop. Built on the NVIDIA Ampere architecture, the RTX A4000 combines 48 second-generation RT Cores, 192 third-generation Tensor Cores, and 6144 CUDA cores with 16 GB of graphics memory. So you can engineer next-generation products, design cityscapes of the future, and create immersive entertainment experiences of tomorrow, today, from your desktop workstation. And with a power-efficient, single-slot PCIe form factor that fits into a wide range of workstation chassis, you can do exceptional work without limits.
Compatible in all systems that accept an NVIDIA RTX A4000
Architecture | NVIDIA Ampere Architecture |
Process Size | 8nm |
Transistors | 17.4 Billion |
Die Size | 392.5 mm2 |
CUDA Cores | 6144 |
Tensor Cores | 192 |
RT Cores | 48 |
Single Precision Performance | 19.2 TFLOPS |
RT Core Performance | 37.4 TFLOPS |
Tensor Performance | 153.4 TFLOPS |
GPU Memory | 16 GB GDDR6 with ECC |
Memory Interface | 256-bit |
Memory Bandwidth | 448 GB/sec |
Display Connectors | 4x DisplayPort 1.4a |
NVENC | NVDEC | 1x | 1x (+ AV1 decode) |
System Interface | PCI Express 4.0 x16 |
Form Factor | 4.4” H x 9.5” L Single Slot |
Thermal Solution | Active Fansink |
Maximum Power Consumption | 140 W NVIDIA Quadro and RTX Power Guidelines |
Power Connector | 1x 6-pin PCIe |
Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
Frame Lock | Optional NVIDIA Quadro Sync II |
