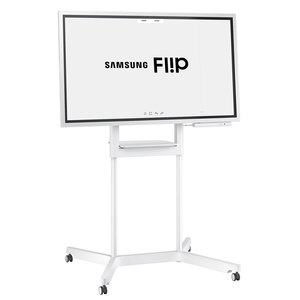

Samsung WM55H 55″ Digital Flipchat Signage

🔍

Samsung WM55H 55″ Digital Flipchat Signage

A 4K UHD digital flipchart that drives collaboration and expands presentation capabilities in today’s fast-paced and digital-centric workflow.

Add to Wishlist loading
Add to quote
Categories: ,

Description

Series Name
Series Name
WM55H
Display
Screen Size
55″
Panel Technology
60Hz E-LED
Resolution
3,840 x 2,160 (Landscape)
2,160 x 3,840 (Portrait)
Brightness
300nit (without glass), 220nit (with glass)
Contrast Ratio (Typical)
4700:1 (without glass)
Viewing Angle (H/V)
178:178
Response Time
8ms(Typ.)
Connectivity
Input
VIDEO: HDMI 1
USB: USB 2 (ver 2.0 x2, Side 1, Sensor Assy 1)
Output
TOUCH OUT: Touch Out 1 (Side, USB Upstream Type)
External Control
Touch Input, RJ45 (not for User Control)
Sensor
NFC, Acceleration sensor, Proximity Sensor
Power
Power Supply
AC 100~240V 50/60Hz
Power Consumption (Typical/Max)
Typ: 100 W/h, Max: 165 W/h
Power Consumption (Standby)
0.5 W/h
Environmental Conditions
Operating Temperature
0℃~ 40℃
Operating Humidity
10~80%
Features
Key
Flip App
Special
HARDWARE: Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded
SOFTWARE: Flip S/W
PLATFORM: Kant-M (Tizen 3.0)
Touchscreen
Yes
Speaker Type
Built in Speaker (10W x 2)
Touch
Type
Advanced IR
# of Drawing
4 drawing
Touch Pen Type
Passive Pen
Object Recognition Range
2mm/ 4mm / 8mm / 50mm
Touch Response Time
38ms ~ 46ms
(According to number of Multi Drawing )
Internal Player
Processor
CA72 Quad(1.7GHz)
On-Chip Cache Memory
L1 (I/D) : 32KB / 32KB
L2 (Unified) : 1MB
Clock Speed
1.7GHz CPU Quad
Main Memory Interface
LPDDR4 1400MHz 64bit 3GB
Graphics
2D & 3D Graphics Engine
– Up to 1920×1080. 32bpp
– Supports OpenGL ES
Storage
8GB
(2.65GB Occupied by O/S, 5.35GB Available, )
Multimedia
Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/ AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
Audio Decoder: AC3 (DD), MPEG
IO Ports
USB 2.0
Operating System
Samsung Proprietary OS(VDLinux)
Dimensions
Without Stand (W x H x D)
1302.6 x 805.5 x 52 mm
Packaging (W x H x D)
1469 x 924 x 210 mm
Weight
Product Weight
28.9 kg
Package Weight
34.9 kg
Accessories
Included in Box
Passive Pen(2), Power Cable, Touch Out Cable (USB upstream)
Optional Wall Mount Kit
WMN-6575SD
Optional Stand
STN-WM55H
Specialty
Flip UX
Mechancial Specs
VESA Mount
400 x 400
Color
Light Gray
Protection Glass
Yes
Stand Type
Moving Stand(Acc), Wall Mount
Rotation
Available with Flip Stand
(Rotation Sylinder Included)
Power Cable Length
3m
Accessory
Cover-Jack
