Sharp PN-LC752 LCD 75″ Infrared Touch Display

LCD 75″ Infrared Touch Display

Haze Level Standard
Operating Hours 16/7
Brightness [cd/m²] 450
Resolution 3840 x 2160
Order Code 60005892

Click For All Datasheet

Add to Wishlist loading
Add to quote
Category:

Description

Boost engagement in learning environments

NEC/Sharp’s LC series interactive display touch screens are ideal for classrooms and businesses. They offer seamless USB-C connectivity for easy device integration. With BYOD support, users can connect and charge devices with a single cable. The screens enable multiple users to interact at once, promoting collaboration. HDMI-OUT allows you to expand the display to larger screens or projectors. This feature is perfect for bigger audiences. The interactive display LC series enhances engagement, productivity, and collaboration in any space.

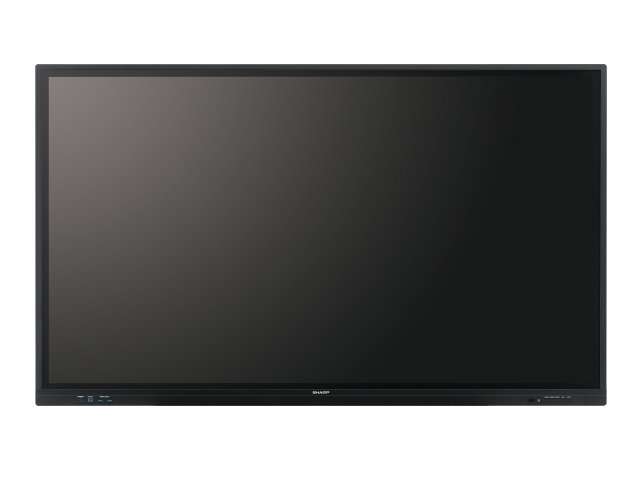

Sharp_LxxxC_front_ContentBenefits

  • Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
  • Get an out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
  • EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
  • USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/ audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
  • HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.

TECHNICAL DATA

DISPLAY
Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,649.7 x 927.9
Screen Size [inch/cm] 75 / 189.3
Aspect Ratio 16:9
Pixel Pitch [mm] 0.430
Brightness (without glass) [cd/m²] 450
Contrast Ratio (typ.) 1200:1
Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn] 1.07 (8bit + FRC)
Response Time (typ.) [ms] 8 (grey-to-grey)
Supported Orientation Landscape
TOUCH
Touch Technology Infrared
Number of Touches Real multi-touch up to 20 touches
Touch Method Finger; Gloves; Stylus dual pen tip (3mm/9mm)
Data Interface USB 2.0 (full speed) HID; USB powered, plug & play
Accuracy [mm] +/- 1
Windows Ink no
Palm Rejection no
Operating System Native Multi-Touch: Windows 8.1/10/11, Linux, Android 9.0 or higher, Chrome OS 87 or higher; Single Touch (Default Mouse): Mac OS 10.15/11/12
GLASS
Type Thermal-tempered, anti-glare coating; Zero Bonding
Bonding Gap [mm] 0.8
Thickness [mm] 3.2
Haze Level [%] 3 ~ 8
Hardness [H] ≥ 8
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 960;1360 x 768;1440 x 900;1680 x 1050;1920 x 1080;1920 x 720;3840 x 2160;4096 x 2160;640 x 480;720 x 480;720 x 576;800 x 600
CONNECTIVITY
Input Video Analogue 1 x VGA
Input Video Digital 1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 3 x HDMI (with HDCP)
Input Audio Analogue 1 x 3,5 mm jack
Input Control 1 x RS232; LAN 10Base-T/100Base-TX/1000Base-T
Input Data 4 x USB 3.0 (Type-A)
Input Touch 1x USB Type-C (shared with video input); 2 x USB 3 (Type-B)
Output Video Digital 1 x HDMI (loop through: HDMI, DP, OPS slot-in PC, Android SoC)
Output Audio Analogue 1 x 3,5 mm jack
Output Audio Digital 1 x SPDIF
Input Detect Last
OPEN MODULAR INTELLIGENCE



ELECTRICAL
Power Consumption [W] 200 Eco (shipment setting), 420
Power Savings Mode [W] < 0.5 (ECO Standby); < 2 (Networked Standby)
Power Supply 100-240 V AC; 50/60 Hz
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
MECHANICAL



EMBEDDED COMPUTING
System Version Android 11
CPU Arm Cortex-A55 (Quad-Core)
System Memory 4G RAM
Internal Storage 16GB ROM
Android Features Hide compass and side bar
Built-in Applications File Manager; Input Select; Setting; Web Browser; Whiteboard; Wireless Screen Sharing – E-Share
Built-in Tools Annotation overlay mode; Calculator; Calender; Compass for shortcut button; Screen recorder; Timer; Voting Kit
BLUETOOTH
WIRELESS LAN
WLAN IEEE802.11ac/n/a/g/b compliant
AVAILABLE OPTIONS

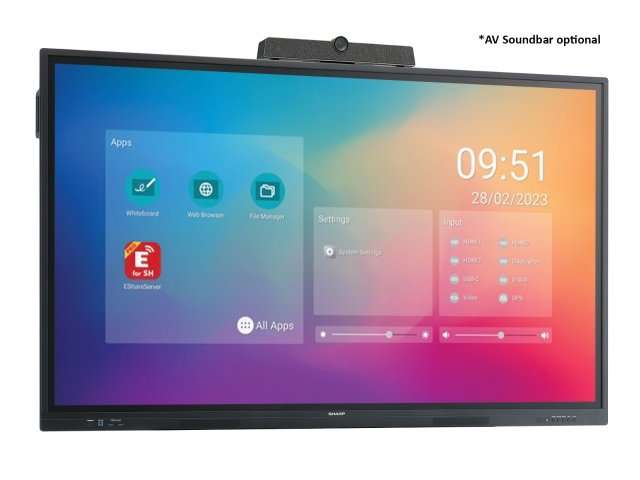

Accessories Pen software license extension PN-SU01; Soundbar (PN-ZCMS1); Trolley (PD02MHA, PD03MHA, L20PNSR780MEU); USB-C cable (USB-C 5M); Wall mount (SF680P)
OPS Slot Recommended: OPS Enterprise Pro (100016118), OPS Enterprise Ultra (100016122)
REGULATORY
Safety and Ergonomics CE; FCC; RCM; REACH; RoHS; UKCA; UL/C-UL
GREEN FEATURES
Energy Efficiency ECOMode; LED backlight
3RD PARTY CERTIFICATIONS
ADDITIONAL FEATURES
Special Characteristics CEC Support; HDMI ARC; NaViSet Administrator 2 – free download; Powered USB Port (65 W)
Audio Integrated Speakers (15 W + 15 W)
Shipping Content 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter
Warranty 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours 16/7
Remote Management NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports
