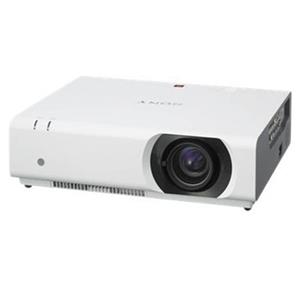

Sony VPL CH350 4000 Lumens WUXGA 3LCD Projector
High resolution WUXGA image
The VPL-CH350 delivers an amazing resolution of WUXGA (1920 x 1200). Extremely clear and detailed high-quality images are projected, even on a large screen. The VPL-CH350 is the ultimate tool for projecting images in a range of applications requiring exceptional detail.
Description
Display system
3 LCD system
Size of effective display area
0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 × 1200 × 3) pixels
Focus
Manual
Zoom – Powered/Manual
Manual
Zoom – Ratio
Approx. x 1.45
Throw Ratio
1.5:1 to 2.2:1
Lens shift – Powered/Manual
Manual
Lens shift – Range Vertical
+/- 5%
Lens shift – Range Horizontal
+/- 4%
Light source
Ultra high pressure mercury lamp
Wattage
250 W type
Recommended lamp replacement time*1
Lamp mode: High
3000 H
Lamp mode: Standard
4000 H
Lamp mode: Low
5000 H
Filter cleaning / replacement cycle (Max.) *1
Filter cleaning / replacement cycle (Max.)
Same as the lamp replacement
Screen size
40” to 300” (1.02 m to 7.62 m) (measured diagonally)
Lamp mode: High
4000 lm
Lamp mode: Standard
3200 lm
Lamp mode: Low
2600 lm
Lamp mode: High
4000 lm
Lamp mode: Standard
3200 lm
Lamp mode: Low
2600 lm
Contrast ratio (full white / full black)*2
Contrast ratio (full white / full black)
2500: 1
Speaker
12 W x 1 (monaural)
Displayable scanning frequency
Horizontal
19 kHz to 92 kHz
Vertical
48 Hz to 92 Hz
Computer signal input
Maximum display resolution: 1920 × 1200 dots*3
Video signal input
480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p
Colour system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Vertical
+/- 30 degrees
Horizontal
+/- 20 degrees
OSD language
24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek)

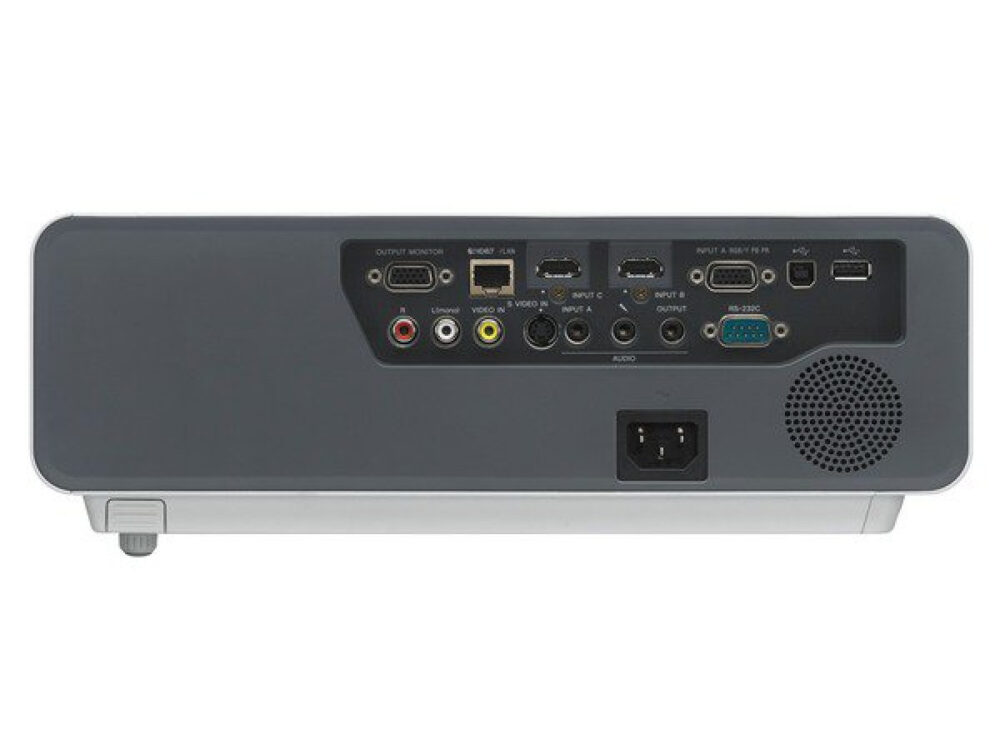

INPUT OUTPUT (Computer/Video/Control)
INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
Audio input connector: Stereo mini jack
INPUT B
HDMI input connector: HDMI 19-pin, HDCP support
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
S-VIDEO IN
S-video input connector: Mini DIN 4-pin
VIDEO IN
Video input connector: Phono jack
OUTPUT
Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack
Audio output connector*5: Stereo mini jack
REMOTE
RS-232C connector: D-sub 9-pin (male)
LAN
RJ-45,10BASE-T/100BASE-TX
USB
Type-A
USB
Type-B
MICROPHONE IN
Microphone input: Mini Jack
Lamp mode: Low
29 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°C to 40°C (32°F to 104°F) / 20% to 80%（no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-20°C to +60°C (-4°F to +140°F) / 20% to 80% (no condensation)
Power requirements
AC 100 V to 240 V, 3.6 A to 1.6 A, 50/60 Hz
AC 100 V to 120 V
Lamp mode: High: 353 W
AC 220 V to 240 V
Lamp mode: High: 334 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V
0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V
5.0 W (LAN)
5.1 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)
5.1 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)
AC 220 V to 240 V
5.2 W (LAN)
5.3 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)
5.3 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated
After about 10 Minutes
Wireless Network(s) On/Off Switch
Wireless Network(s) On/Off Switch
1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
AC 100 V to 120 V
1204 BTU/h
AC 220 V to 240 V
1139 BTU/h
Dimensions (W x H x D) (without protrusions)
Approx. 406 × 113 × 330.5 mm (15 31/32 × 4 7/16 × 13 inches)
Mass
Approx. 5.7 kg (12 lb)
Remote commander
RM-PJ8
Replacement lamp
LMP-C250
Wireless LAN Module
IFU-WLM3
*1
This figure is expected maintenance time, not guaranteed time. The actual value depends on the environment and how the projector is used.
*2
The value is average.
*3
Available for VESA Reduced Blanking signal.
*4
From INPUT A.
*5
Works as an audio switcher function. Output from a selected channel; not available in standby.
Environmental notice for customers in the USA
Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or see www.sony.com/mercury for additional information
