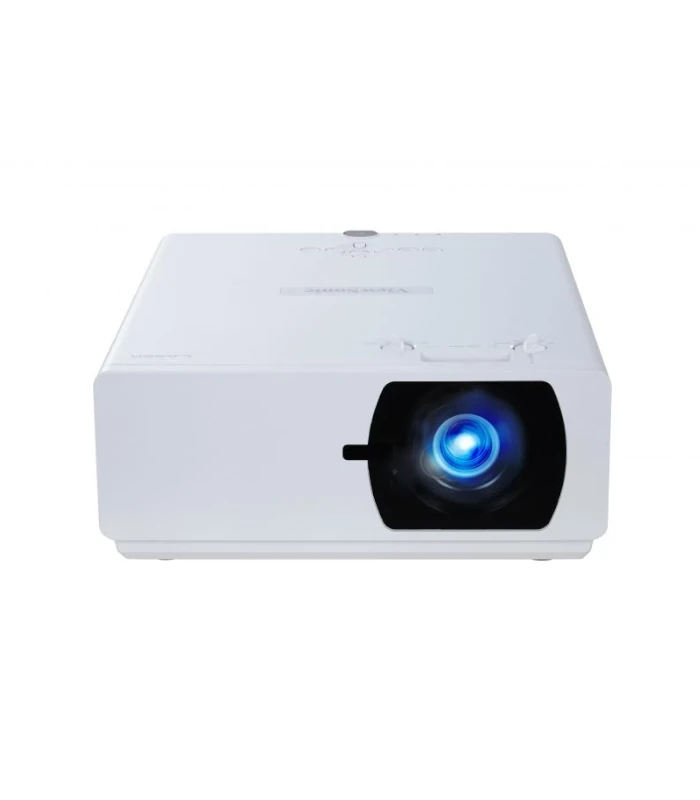

ViewSonic LS800HD 5,000 Lumens Installation Projector
ViewSonic LS800HD 5,000 Lumens Installation Projector
- Laser phosphor technology
- Full HD 1080p resolution
- 30,000 hours lifespan
- Built-in HDBaseT receiver
- H/V lens shift & 1.65X optical zoom
Download Catalog PDF Click here<
Description
ViewSonic LS800HD 5,000 Lumens Installation Projector
The LS800HD shines bright in virtually any environment with 5,000 ANSI Lumens of high-brightness projection and 1080p resolution clarity. The projector comes equipped with a laser phosphor technology capable of achieving up to 30,000 hours of maintenance free projection and is capable of 24/7 continuous operation to provide a dramatically durable solution for public use. H/V lens shift and 1.65X optical zoom offers additional flexibility and makes the projectors adaptable to a wide array of installation settings. The projector’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter. Addition features such as portrait mode and 360-degree projection allow users to deliver a fresh visual perspective for creative applications such as staging and advertising.
Laser Phosphor Technology
Unlike traditional lamp based projectors, LS800HD is designed with laser phosphor technology which provides virtually maintenance-free usage for a lower overall total cost of ownership.
High Brightness
Packed with 5,000 ANSI Lumens, LS800HD projector is guaranteed to produce high brightness suitable for large spaces with high ambient light.
High Contrast Ratio
Boasting a 100,000:1 ultra-high contrast ratio, even the finest shades of color are enhanced – a key characteristic for delivering razor-sharp images.
Amazing Color Accuracy
ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.
Low Total Cost of Ownership
Long-lasting Lifespan
Laser technology offers a 30,000 hour lifespan, which is delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.
Sealed Optical Engine
The sealed optical engine with IP6X prevents dust and moisture from affecting the lighting system, ensuring the projector’s image quality over time is maintained.
Automated Sleep Timer
Sleep Timer function allows users to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.
Reduced Energy Consumption
When no signal has been detected, the projector will automatically power off to conserve energy.
Energy Efficiency
Power Saving Mode allows users to extend the projector’s lifespan and minimize energy consumption. When in Power Saving Mode, the projector will automatically switch into Eco Mode and SuperEco Mode whenever there is no signal input detected.
Ease of Use
360-degree Creative Applications
The projector can be freely rotated at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
90-degree Portrait Mode
Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.
Built-in HDBaseT Receiver
LS800HD’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter.
Installation Flexibility
The tool-free control knob controls the lens shift function for easily adjusting the projection lens up, down, left, and right, providing flexible installation options with less placement restrictions.
Larger than Life Images
Equipped with a 1.65X optical zoom lens, this projector provides mounting flexibility with a wider throw distance range.
Non-stop 24/7 Operation
With an advanced cooling design, LS800HD enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
LAN Control
LS800HD is the first ViewSonic projector compatible with Control4 network management. The projector is also Creston, AMX and vController compatible for easy-to-use network management.
Multiple HDMI Inputs
3 HDMI ports provide more options for connecting any HDMI-enabled multimedia devices.
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
Instant Activation
Auto Power On can be used to get your projector up and running in an instant:
- Signal Power On: The projector will power on automatically upon detection of a HDMI and VGA1 cable connection.
- CEC compatible: The projector can be set to trigger DVD players to switch on/off automatically whenever the projector is powered on/off.
ViewSonic DLP Projectors
Exceptional DLP Image Quality
DLP display technology combines accurate, long lasting color with high native contrast ratios. Nowadays, about 90% of Movie Theaters use DLP technology for Digital Projection. The same technology that started a revolution just got a lot better!
Long-lasting Color Performance
Built on all-digital DLP technology, the DMD (Digital Micromirror Device) is able to recreate its incoming source material with each projection experience that will not fade over time. Therefore, ViewSonic DLP projectors virtually eliminate image degradation and deliver brand new color performance every time of use.
Crystal Clear Images
DMD structures a high fill factor pixel arrangement with small gap, so ViewSonic DLP projectors could produce smooth, clean images. The graphs and text is displayed more precisely and without “screen door effect”.
High Native Contrast Ratio
The optical system used in ViewSonic DLP projectors provides “Deeper Black” and “Native High Contrast Ratios” due to DMD technology. A high contrast ratio adds depth to images and gives them a more realistic feel.

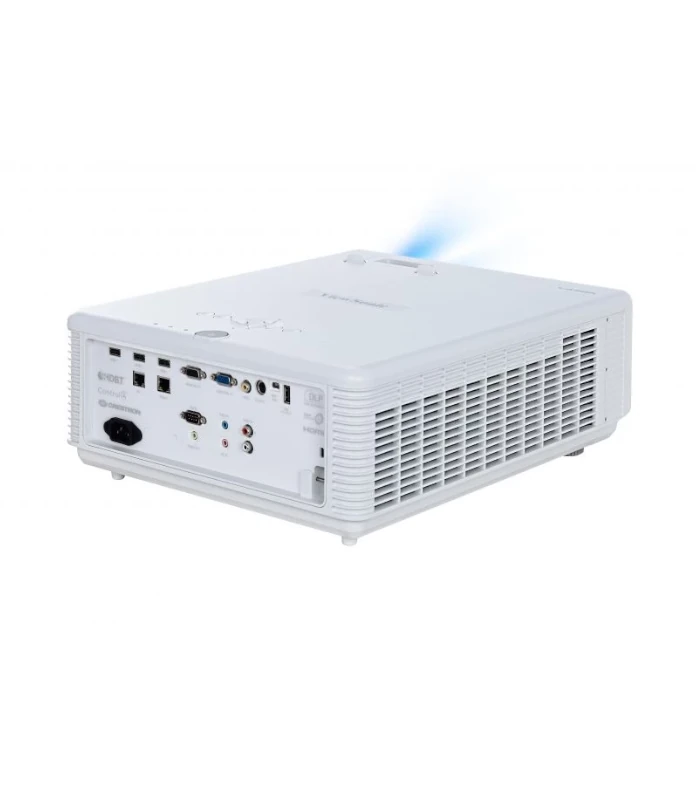

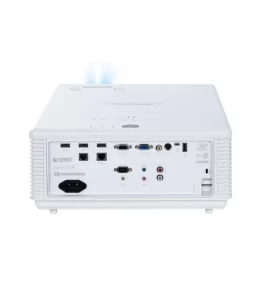

Exterior & Rear I/O Connectors
- Horizontal lens shift adjustment
- 1.65X optical zoom
- Front IR
- Power Key & Top IR
- Keypad
- Vertical lens shift adjustment
- Focus adjustment
- HDMI x3
- Computer in
- Monitor out
- Video
- 3D sync(VESA)
- Mini USB for Service
- USB type A(5V/1.5A)
- AC in
- LAN(RJ45)
- HDBaseT(RJ45)
- RS232
- Audio out
- Audio in/Mic in
- Audio in(R/L)
