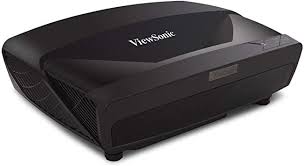

ViewSonic LS810 WXGA Laser Projector
ViewSonic LS810 WXGA Laser Projector Features:
Description
ViewSonic LS810 WXGA Laser Projector Description
ViewSonic LS810 WXGA Laser Projector featuring 1280×800 WXGA resolution and 5,200 lumens of brightness, the ViewSonic LS810 Laser Projector is the ideal solution for modern business and education environments. Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for any boardroom or classroom. With its 0.23 ultra-short throw ratio, HV keystoning and 4 corner adjustments, the LS810 makes installation a hassle-free experience. What’s more, the ultra-short throw ratio allows you to place the projector just inches away from a wall or screen to give you a huge image for less cost than a comparably sized display. The LS810 also features a hidden PortAll compartment which accommodates additional accessories such as a wireless streaming device, or PC stick. Powered by SuperColor technology for true-to-life images, and SonicExpert technology for incredibly clear sound, the LS810 delivers an immersive audiovisual performance.
Specifications:
RESOLUTION
1280 x 800
THROW RATIO
0.23
THROW DISTANCE
1.21 – 2.62 ft. / 0.37 – 0.8 m
BRIGHTNESS (LUMENS)
5,200 ANSI
DISPLAY
TYPE
DLP Laser
RESOLUTION TYPE
WXGA (1280×800)
RESOLUTION
1280 x 800
BRIGHTNESS (LUMENS)
5,200 ANSI
DISPLAY SIZE (IN.)
70 – 150 in. / 1.78 – 3.81 m (diagonal)
THROW DISTANCE
1.21 – 2.62 ft. / 0.37 – 0.8 m
THROW RATIO
0.23
KEYSTONE
Vertical (± 30º) / Horizontal (± 30º)
LENS
Digital optical focus
LIGHT SOURCE (WATT)
390
LIGHT SOURCE LIFE, NORMAL (HOURS)
15000
LIGHT SOURCE LIFE, DYNAMIC ECO-MODE (HOURS)
20000
COLOR DEPTH
30 bits, 1.07B Color (10+10+10)
DYNAMIC CONTRAST RATIO
100,000:1
ASPECT RATIO
16:10
VIDEO SIGNAL
FREQUENCY HORIZONTAL
15–100KHz
FREQUENCY VERTICAL
24–120Hz
COMPATIBILITY
PC RESOLUTION (MAX)
Up to 1920×1080
MAC® RESOLUTION (MAX)
Up to 1920×1080 (may require MAC adapter)
CONNECTOR
USB 2.0 TYPE A
1
USB TYPE A (5V 2A)
1
ETHERNET LAN (RJ45)
1
3.5MM 12V TRIGGER
1
3.5MM AUDIO OUT
1
3.5MM AUDIO IN
1
CONTROL (RS-232)
1
CONTROL (RS232)
1
HDMI 1.4 IN
1
HDMI MHL
1
VGA IN
2
VGA OUT
1
COMPOSITE RCA VIDEO IN
1
COMPONENT RCA
1
S-VIDEO IN
1
MINI USB
1
MICRO USB
1
RCA AUDIO IN (L/R)
2
AUDIO
INTERNAL SPEAKERS
8W (x2)
AUDIO DESCRIPTION
Dual silk tweeters + full-range drivers, ported chambers, Waves MaxxAudio(r) DSP
POWER
VOLTAGE
AC 100-240V (universal), 50-60Hz
CONSUMPTION (MAX)
450W
STAND-BY
<0.5W
CONTROLS
PHYSICAL CONTROLS
Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
ON SCREEN DISPLAY
Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
0-90%
NOISE LEVEL
ECO-MODE
28dB
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
WEIGHT (IMPERIAL)
NET (LBS)
30.0
GROSS (LBS)
42.8
WEIGHT (METRIC)
NET (KG)
13.6
GROSS (KG)
19.4
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
21.65 x 12.2 x 22.44
PHYSICAL (IN.)
20.0 x 6.5 x 15.4
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
550.0 x 310.0 x 570.0
PHYSICAL (MM)
508.0 x 165.0 x 392.0
GENERAL
AV CONTROL
AMX Certified, ATEN Certified, Crestron Certified, Extron Certified, PJ Link Certified
REGULATIONS
Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP
PACKAGE CONTENTS
LS810 Projector, Power Cable, VGA Cable, HDMI Cable, Remote Control with Batteries, Quick Start Guide
WARRANTY
Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
