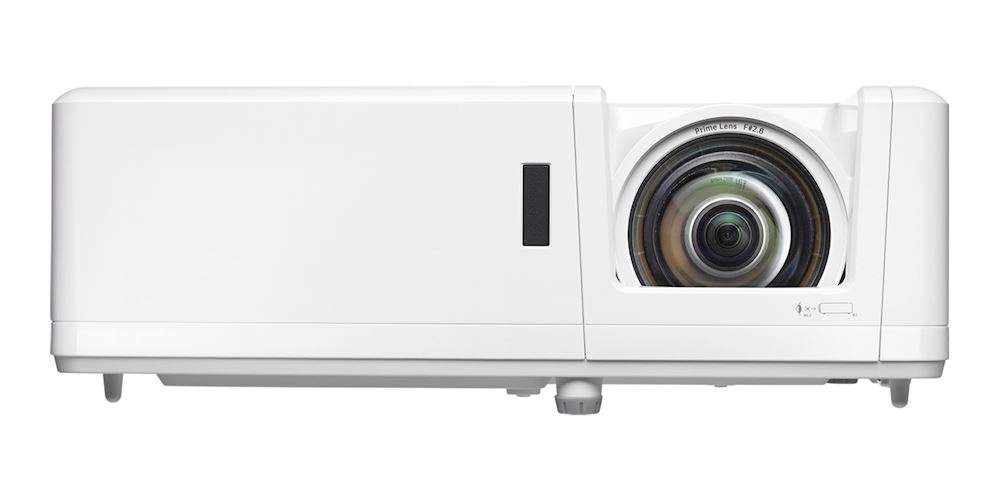

ZH606e Bright Full HD 1080p laser projector
- Bright Full HD 1080p laser projector – 6,300 lumens
- 30,000 hours maintenance-free laser light source at full brightness
- 4K and HDR compatible
Download Catalog PDF Click here>
Description
ZH606e Bright Full HD 1080p laser projector
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Quick resume
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
Vertical Lens Shift
Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Integrated speaker
A built-in speaker offers excellent audio support and an easy setup without the need for costly external speakers
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Laser technology
Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.
MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
Telnet
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Auto keystone
Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.
*Auto keystone only adjusts the image in the vertical plane.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
USB-Power
Use the USB-Power to power an HDMI dongle
AV mute
Stay in control of your presentation with AV mute. Direct your audience’s attention away from the screen by blanking the image when not needed.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.
DuraCare Warranty
Optoma’s additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.
12,000 hour re-manufacture service:
- Replacement of laser light source
- Replacement of critical components and moving parts
- Internal inspection and cleaning
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Specification
Display/image
| Display technology |
DLP™
|
| Resolution |
1080p Full HD (1920×1080)
|
| Brightness |
6,300 lumens
|
| Contrast ratio |
300,000:1
|
| Native aspect ratio |
16:9
|
| Aspect ratio – compatible |
4:3
|
| Keystone correction – horizontal |
+/-30°
|
| Keystone correction – vertical |
+/-30°
|
| Has vertical auto keystone correction |
Yes
|
| Displayable colours (millions) |
1073.4
|
| Horizontal scan rate |
15.375~91.146 Khz
|
| Vertical scan rate |
24~ 85 Hz (120Hz for 3D)Hz
|
| Uniformity |
85%
|
| Screen size |
0.78m ~ 7.65m (30.6″ ~ 301.1″) diagonal
|
Lamp info
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
Optical
| Throw ratio |
1.2:1 ~ 1.92:1
|
| Projection distance (m) |
1.3m – 8m
|
| Zoom |
1.6
|
| Zoom type |
Manual
|
| Focal length (mm) |
17.63~27.9mm
|
| Lens shift |
Vertical -106 ~ 127%, Horizontal: +/-0%
|
| Native offset |
106%
|
| Lens shift |
Yes – {{downloads_link}}
|
Connectivity
| Connections |
|
|||
| LAN – wireless networking |
No
|
General
| Noise level (min) |
32dB
|
| Noise level (max) |
34dB
|
| PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(24/50/60Hz)
|
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| IP rating |
IP6x
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| 24/7 operation |
Yes
|
| Operating conditions |
Sea Level to 10,000 feet (@23°C); manual switch to high altitude mode @5000 feet & above
|
| Remote control |
Backlit ProAV remote
|
| Heat dissipation |
1,589BTU/hour
|
| Speaker count |
2
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit
|
Networking
| LAN – control |
Yes
|
| LAN – wireless networking |
No
|
| LAN |
Yes
|
Power
| Power supply |
100V ~ 240V ± 10%, 50-60Hz
|
| Power consumption (standby) |
<0.5W
|
| Power consumption (min) |
204W
|
| Power consumption (max) |
466W
|
Weight and dimensions
| Dimensions (W x D x H) mm |
374 x 302 x 117
|
| Gross weight |
7.5 kg
|
| Net weight |
5.5 kg
|
