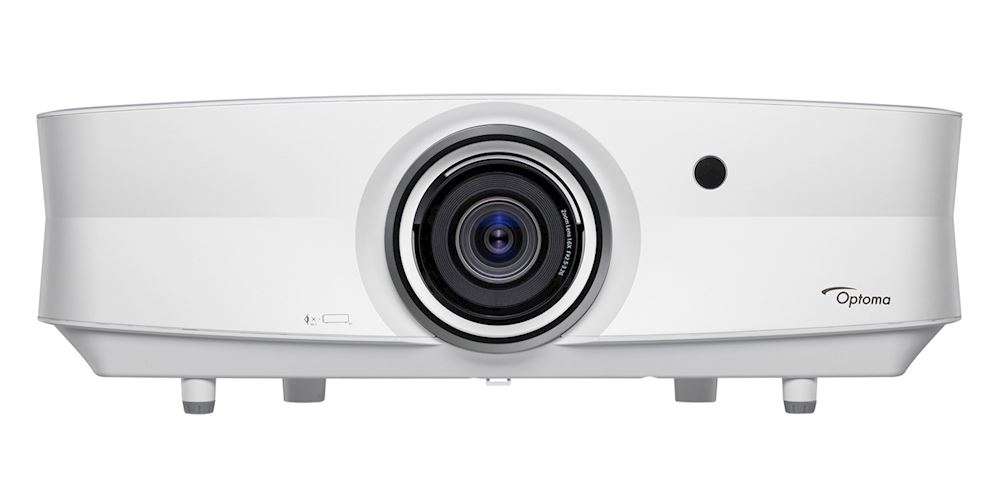

ZK507-W 4K UHD high brightness laser projector
“ZK507-W: High Brightness 4K UHD Laser Projector|
- 4K UHD Resolution: Sharp and detailed image quality with a resolution of 3840 x 2160 pixels.
- High Brightness: Exceptional brightness suitable for well-lit environments, ideal for presentations and large venues.
- Laser Technology: Reliable and long-lasting laser light source for consistent performance and reduced maintenance.
- Wide Color Gamut: High color accuracy and vivid colors to enhance viewing experience.
- Versatile Connectivity: HDMI, VGA, USB, and network connectivity options for flexible integration with various devices.
- Advanced Image Adjustments: Keystone correction, lens shift, and zoom capabilities for flexible installation options.
Open link in a CataLog
Description
ZK507-W 4K UHD high brightness laser projector
Laser technology
Laser technology
Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.
True 4K UHD Resolution
Ultra HD 4K resolution delivers sharper, life-like images and richer colours – allowing you to sit closer to the screen and enjoy a more immersive experience.
Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That’s four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.
HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
PureMotion
Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences.
UltraDetail
This technology ensures all the information contained in an image is faithfully reproduced on the screen giving a stunning crystal clear, pin-sharp picture.
Vertical Lens Shift
Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
AV mute
Stay in control of your presentation with AV mute. Direct your audience’s attention away from the screen by blanking the image when not needed.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
DuraCare Warranty
Optoma’s additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.
12,000 hour re-manufacture service:
- Replacement of laser light source
- Replacement of critical components and moving parts
- Internal inspection and cleaning
Specification
Display/image
| Display technology |
DLP™
|
| Resolution |
UHD (3840×2160)
|
| Brightness |
5,000 lumens
|
| Contrast ratio |
300,000:1
|
| Native aspect ratio |
16:9
|
| Aspect ratio – compatible |
4:3,16:9
|
| Displayable colours (millions) |
1073.4
|
| Horizontal scan rate |
31 ~ 135Khz
|
| Vertical scan rate |
24 ~ 120Hz
|
| Uniformity |
70%
|
| Screen size |
0.67m ~ 7.68m (26.45″ ~ 302.2″) diagonal
|
Lamp info
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
Optical
| Throw ratio |
1.39:1 ~ 2.22:1
|
| Projection distance (m) |
1.3m – 9.3m
|
| Zoom |
1.6
|
| Zoom type |
Manual
|
| Focal length (mm) |
20.91mm~32.62mm/0.823″~1.284″
|
| Lens shift |
Vertical +15%, Horizontal: +/-0%
|
| Native offset |
100%
|
| Lens shift |
Yes – see product downloads for more information
|
Connectivity
| Connections |
|
General
| Noise level (min) |
30dB
|
| Noise level (max) |
32dB
|
| PC compatibility |
UHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
UHD: 2160p(24/50/60Hz) / HDTV: 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz) / SDTV : 480i/p, 576i/p
|
| 3D compatibility |
Frame packing, Side-by-Side, Top-and-Bottom
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| OSD / display languages |
9 languages: English, French, German, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
|
| 24/7 operation |
Yes
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Backlit ProAV remote
|
| Speaker count |
2
|
| Watts per speaker |
5W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit
|
Networking
| LAN – control |
Yes
|
Power
| Power supply |
100V ~ 240V, 50-60Hz
|
| Power consumption (standby) |
<0.5W
|
| Power consumption (min) |
274W
|
| Power consumption (max) |
423W
|
Weight and dimensions
| Dimensions (W x D x H) mm |
498 x 331 x 171
|
| Gross weight |
12.4 kg
|
| Net weight |
10.54 kg
|
