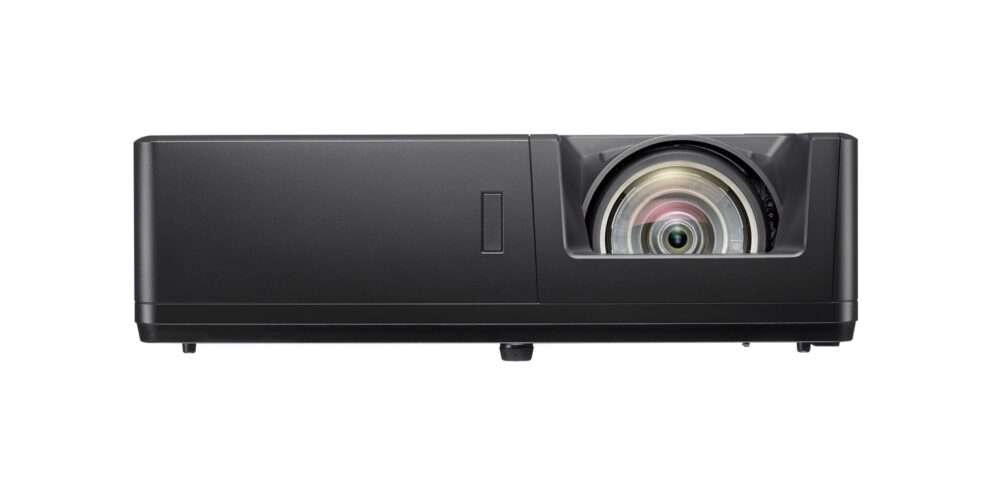

ZU607TST High brightness short throw laser projector
- Bright short throw WUXGA laser projector – 6000lumens
- 30,000 hours maintenance-free laser light source at full brightness
- 4K, HDR and HLG compatibility
- HDBaseT 3.0 connectivity
Download Catalog PDF Click here>
Description
ZU607TST High brightness short throw laser projector
Lights on viewing
This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.
*With no direct sunlight or lights directed on screen.
HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Auto keystone
Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.
*Auto keystone only adjusts the image in the vertical plane.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Game mode
Game mode optimises your projector for maximum contrast and vivid colours to capture every detail – leaving you time to focus on winning.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems
MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
360 projection*
With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
*For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
DuraCare Warranty
Optoma’s additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.
12,000 hour re-manufacture service:
- Replacement of laser light source
- Replacement of critical components and moving parts
- Internal inspection and cleaning
Specification
Display/image
| Display technology | DLP |
| Resolution | WUXGA (1920×1200) |
| Brightness | 6,000 lumens |
| Contrast ratio | 300,000:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9,16:10 |
| Keystone correction – horizontal | +-15° |
| Keystone correction – vertical | +-15° |
| Has vertical auto keystone correction | Yes |
| Displayable colours (millions) | 1073.4 |
| Horizontal scan rate | 5~140HzKhz |
| Vertical scan rate | 24~120HzHz |
| Uniformity | 85% |
| Screen size | 0.76m ~ 7.62m (30″ ~ 300″) diagonal |
Lamp info
| Light source type | Laser |
| LASER life | 30,000 hours |
Optical
| Throw ratio | 0.58:1 |
| Projection distance (m) | 0.38m – 3.75m |
| Zoom type | Fixed |
| Focal length (mm) | 8.51 |
| Lens shift | Vertical -100 ~ 110%, Horizontal: +/-4% |
| Native offset | 110% |
| Lens shift | Yes – {{downloads_link}} |
Connectivity
| Connections |
| |||
| LAN – wireless networking | No |
General
| Noise level (min) | 33dB |
| Noise level (max) | 36dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP rating | IP6X |
| OSD / display languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 360° operation | Yes |
| Remote control | Backlit ProAV remote |
| Speaker count | 2 |
| Watts per speaker | 15W |
| In the box | AC power cord Remote control 2x AAA batteries Basic user manual |
Networking
| LAN – control | Yes |
| LAN – wireless networking | No |
| LAN | Yes |
Power
| Power supply | Universal AC 100–240V± 10%~ 50 / 60 Hz with PFC input |
| Power consumption (standby) | <0.5W |
| Power consumption (min) | 240W |
| Power consumption (max) | 366W |
Weight and dimensions
| Dimensions (W x D x H) mm | 374 x 302 x 117 |
| Gross weight | 8.6 kg |
| Net weight | 6.3 kg |
